Spindle and motor can be freely combined and selected depending on the processing application.
Spindles and motors with various characteristics enable a variety of solutions.
MOTOR SPINDLESElectric SystemE3000series
Great Variety
The largest range of products
The largest range of products
- ・Outer diameter: φ20, φ22, φ25, φ26, φ26.8, φ30, φ33, φ40, φ48, φ50
- ・Max. power: 350 W
- ・Max. motor speed: 80,000 min-1
- ・28 types of motor spindles (straight, angle head, automatic tool change, air bearing, antistatic, etc.)
- ・Spindle accuracy: within 1 μm
- ・Can be mounted on CNC lathes, robots, and special purpose machines
Features
Available in separate type (combination type) and one-piece type (all-in-one type)
-
・Good point of separate type -
・Good point of one-piece typeThe overall length of the motor spindle is shorter than that of the separate type, making it easier to mount on small space-saving CNC lathes and special purpose machines.
Supports φ6.35 tools
Tools with shank diameters up to φ6.35 can be attached.
Please note that the attachable shank diameter size varies by model.
Please note that the attachable shank diameter size varies by model.
Supports various mounting methods
Three types of products are available to meet your mounting needs.
-
・Straight typeNeed to make a holder to mount on a machine -
・Straight type + Grip RingAttach the GR-30 Grip Ring (sold separately) to the spindle
Eliminates the need to make your own holder -
・Flange typeSpindle and holder integrated type
Easy to mount on a machine
Motors with various characteristics
Our lineup of motors with various characteristics enables selecting the motor depending on processing application.
-
Torque & power curve
80,000 min-1 motor spindle
-
Torque & power curve
60,000 min-1 motor spindle
-
Torque & power curve
30,000 min-1 motor spindle
Monitor panel
Visualization of processing loadUse of the load meter enables setting of the optimal processing conditions.
Range of motor speedThe motor speed range is wide from 1,000 to 80,000 min-1, and the 2-digit digital display enables the speed to be set in 1,000 min-1 increments. There is no need to set the maximum motor speed as it automatically detects the connected motor.
Range of motor speedThe motor speed range is wide from 1,000 to 80,000 min-1, and the 2-digit digital display enables the speed to be set in 1,000 min-1 increments. There is no need to set the maximum motor speed as it automatically detects the connected motor.
External control function
The controller can be externally controlled by external devices such as sequencers.
In addition, the operating status can be monitored by an external device via a monitor output.
*Please refer to the operation manual for details.
Specifications
E3000 Controller
| Rated input | AC 100–240 V, 50/60 Hz, 1 phase, 1.8 A |
| Rated output | AC 33 V, 0–1 kHz, 3 phase, 2.4 A |
| Max. output | 350 W |
| Rotation speed range | 1,000–80,000 min-1 |
| Net weight | 2.8 kg |
| Dimensions | W88 mm × D138 mm × H238 mm |

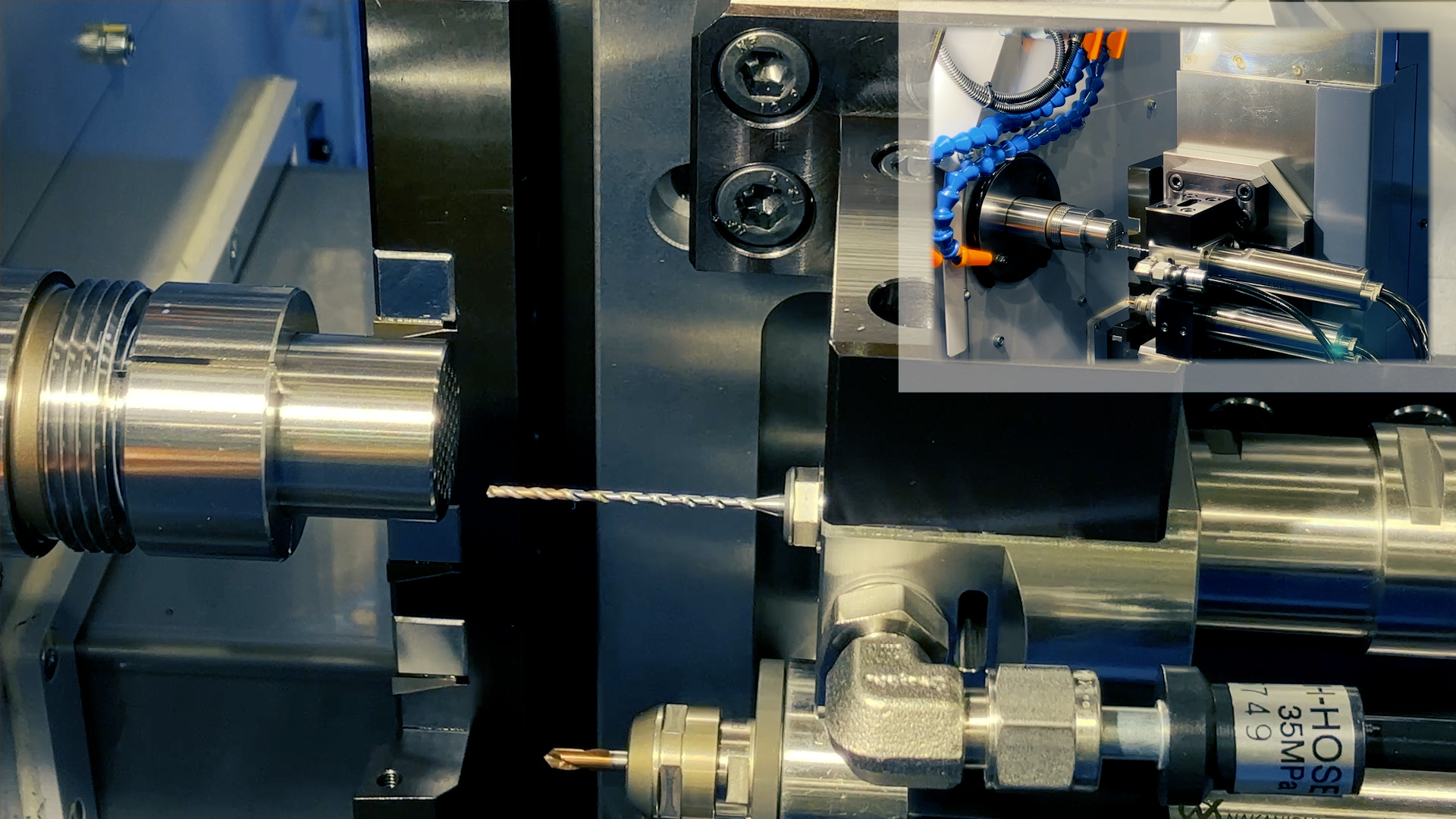

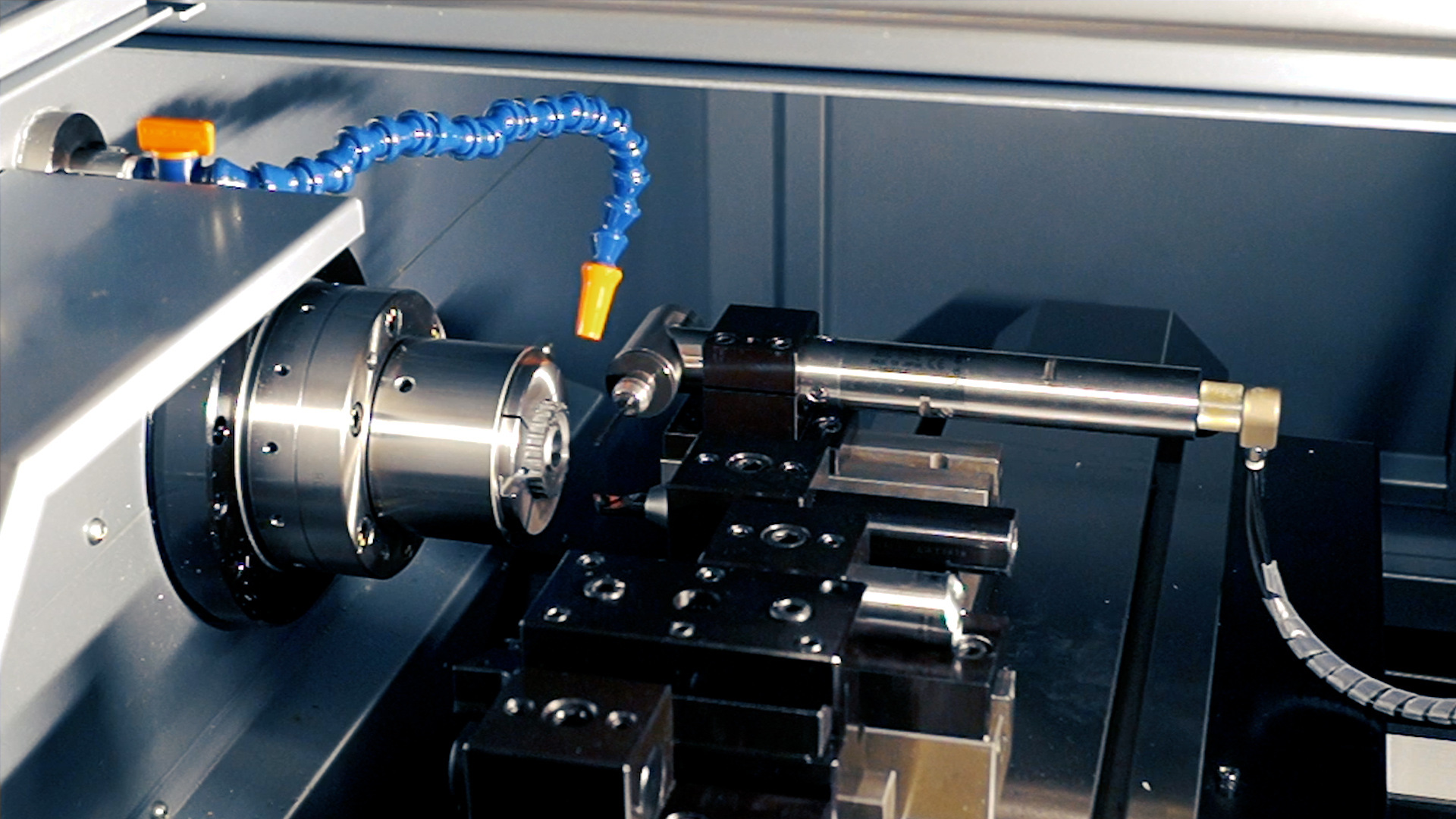

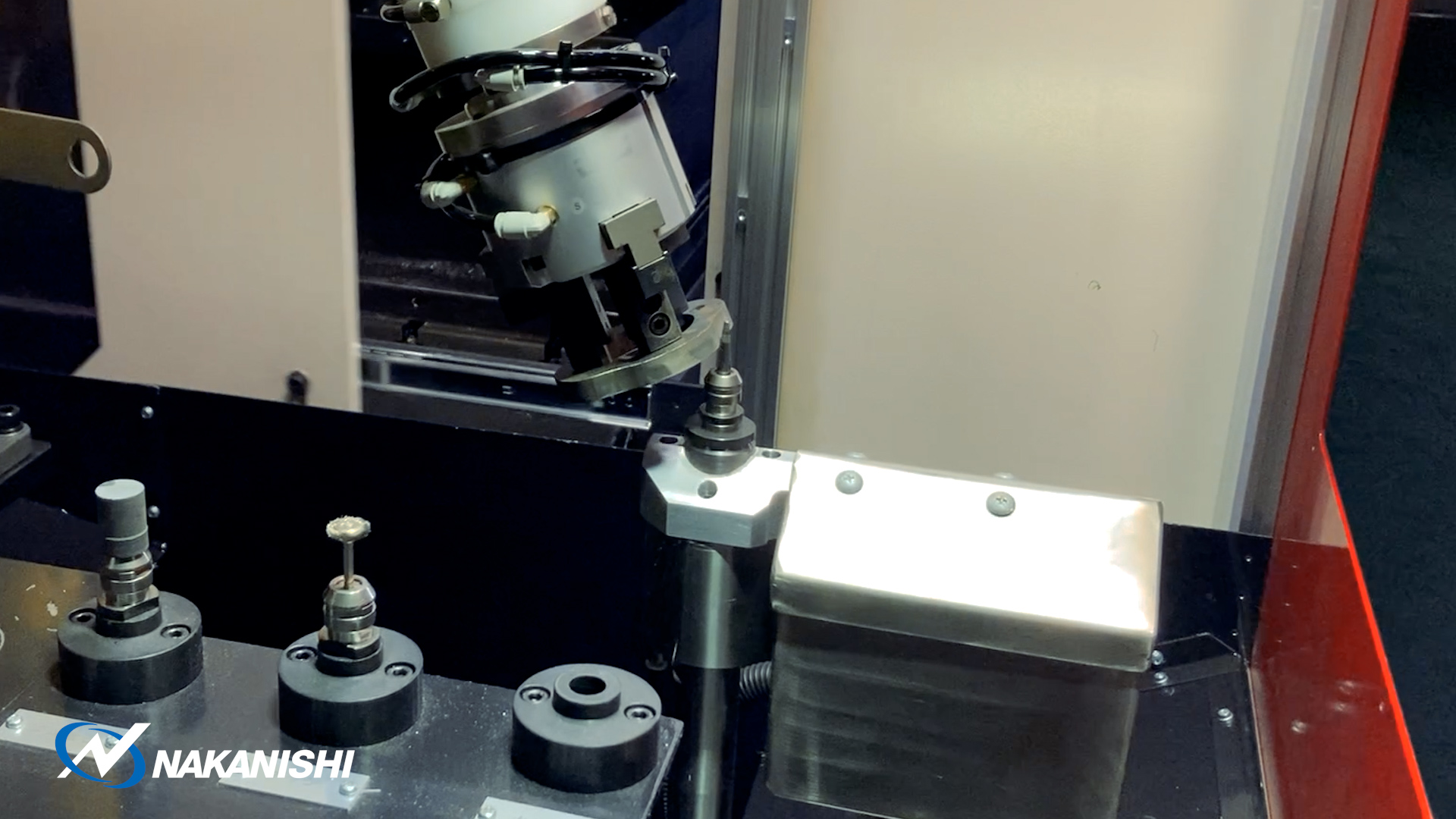

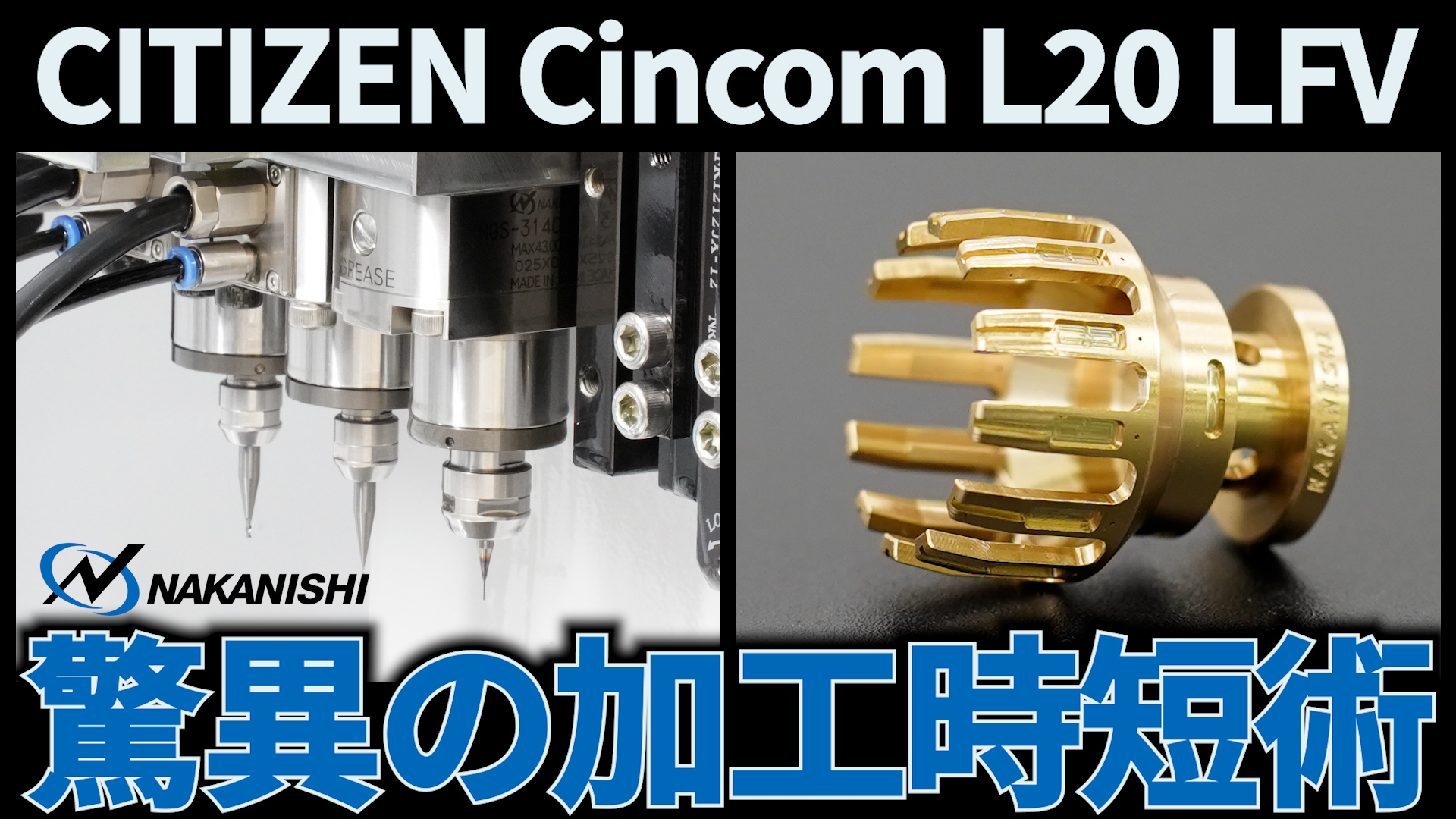

Solutions
-
【Motor Spindle】NR-3060, EM-3060J / E3000
-

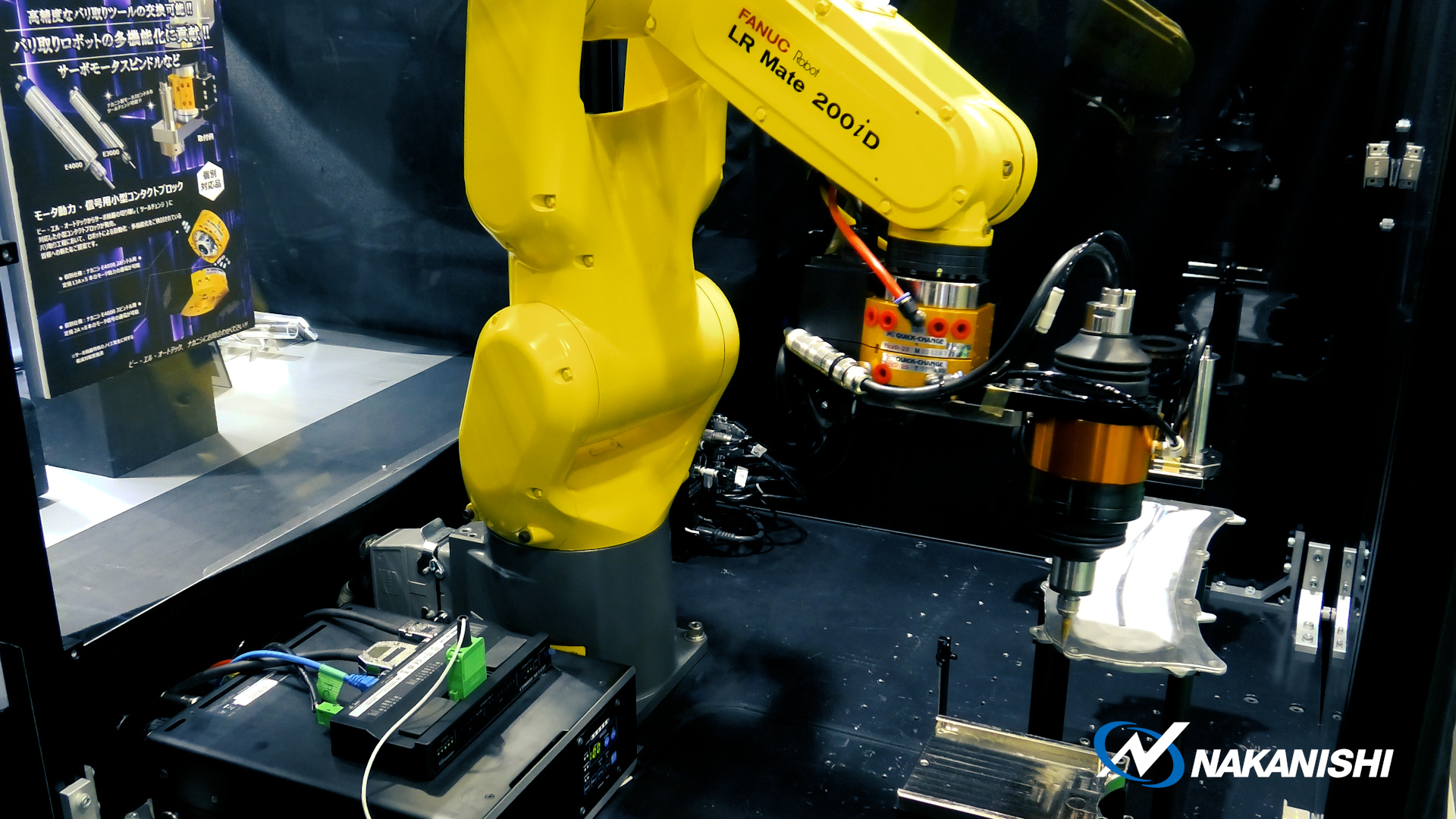

［Aluminum die cast deburring］6 axis robot × Automatic tool change spindle × Air floating spindle
【Motor Spindle】NR4040-AQC, EM-4020A, NR-3060, EM-3060J, COMBOX-NET.EIP / E4000
-
［Inverter case deburring］Robot × Air floating spindle × High torque spindle
【Motor Spindle】NR-3060, EM-3030T-J, BMS-5010 / E4000
