NAKANISHI | Industrial | Motor Spindles | Ispeed3

MOTOR SPINDLESElectric SystemiSpeed3series

The Finger Tips

Maximum freedom in tool layout by minimum body size

Most compact in its class

  • ・Outer diameter: φ19.05, φ20, φ22
  • ・Max. power: 150 W
  • ・Max. motor speed: 80,000 min-1
  • ・Can be mounted on CNC lathes, robots, and special purpose machines
  • ・Spindle accuracy: within 1 μm
Most compact in its class


Ultra compact

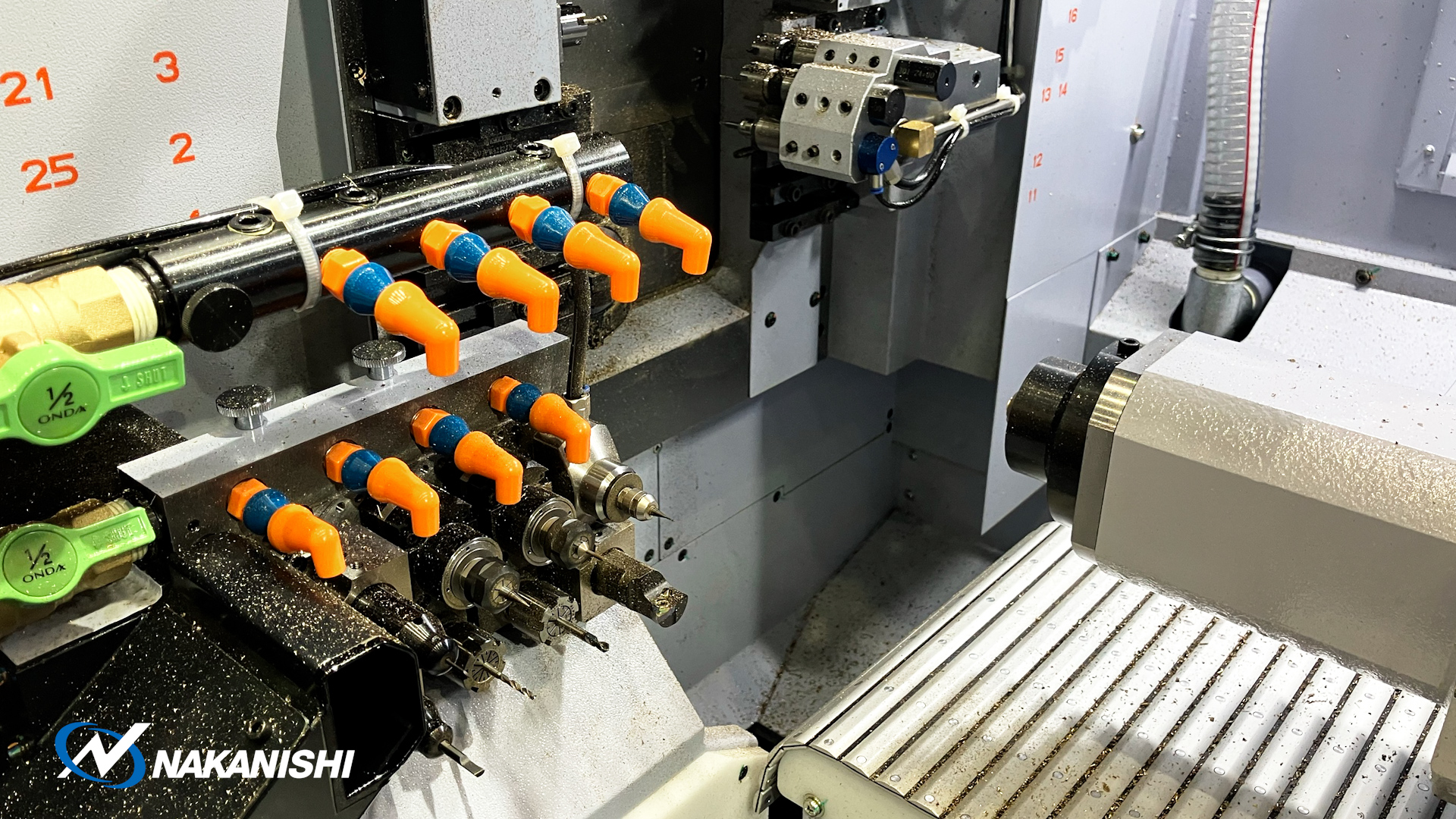

Ultra-compact body enables various tool layouts in the limited lathe space.
Ultra compact

Supports various mounting situations

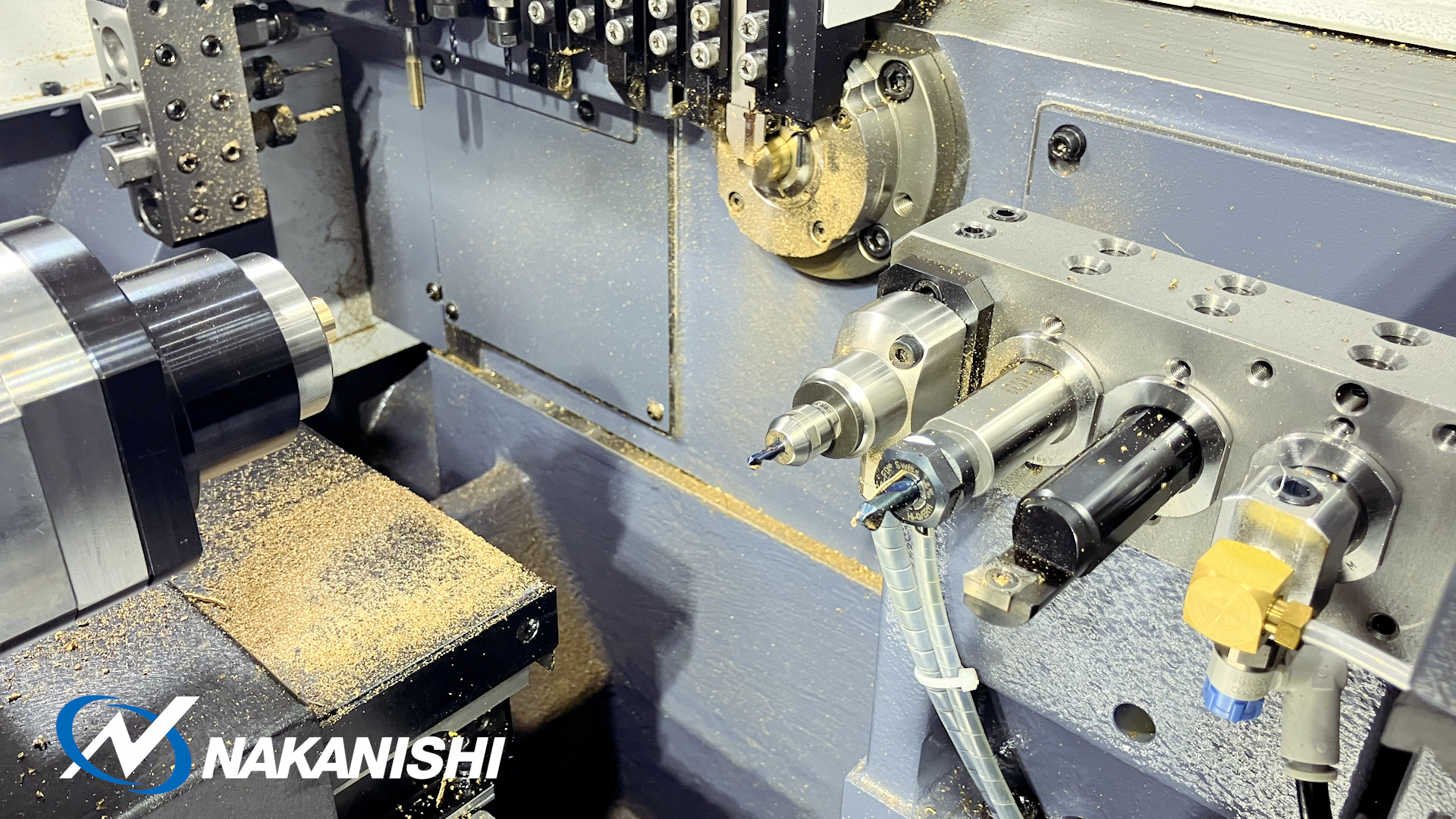

There are various types of motor spindles such as angle cord type and flange type for easy mounting.
Supports various mounting situations

Supports φ4 tools

Tools with a maximum shank diameter of φ4 can be attached.
Supports φ4 tools

Two types of motor spindles with different maximum motor speeds

Two types of motor spindles are available with maximum motor speeds of 80,000 min-1 and 60,000 min-1.
  • Torque & power curve
    80,000 min-1 motor spindle
    Torque & power curve<br>80,000 min<small>-1</small> motor spindle
  • Torque & power curve
    60,000 min-1 motor spindle
    Torque & power curve<br>60,000 min<small>-1</small> motor spindle

Monitor panel

Visualization of processing loadUse of the load meter enables setting of the optimal processing conditions.
Visualization of processing load Range of motor speedThe motor speed range is wide from 1,000 to 80,000 min-1, and the 3-digit digital display enables the speed to be set in 200 min-1 increments. There is no need to set the maximum motor speed as it automatically detects the connected motor.
Monitor panel

External control function

The controller can be externally controlled by external devices such as sequencers.
In addition, the operating status can be monitored by an external device via a monitor output.
*Please refer to the operation manual for details.

External control function


iSpeed3 Controller

iSpeed3 Controller
Rated input AC 200 V/0.65 A (50/60 Hz)
AC 230 V/0.55 A (50/60 Hz)
Max. output 150 W
Rotation speed range 1,000–80,000 min-1
Net weight 3.5 kg
Dimensions W144 mm × D234 mm × H74 mm



Please fill out the below form to obtain operation manuals, DXF data, or STEP data
