Motor Spindle E3000i

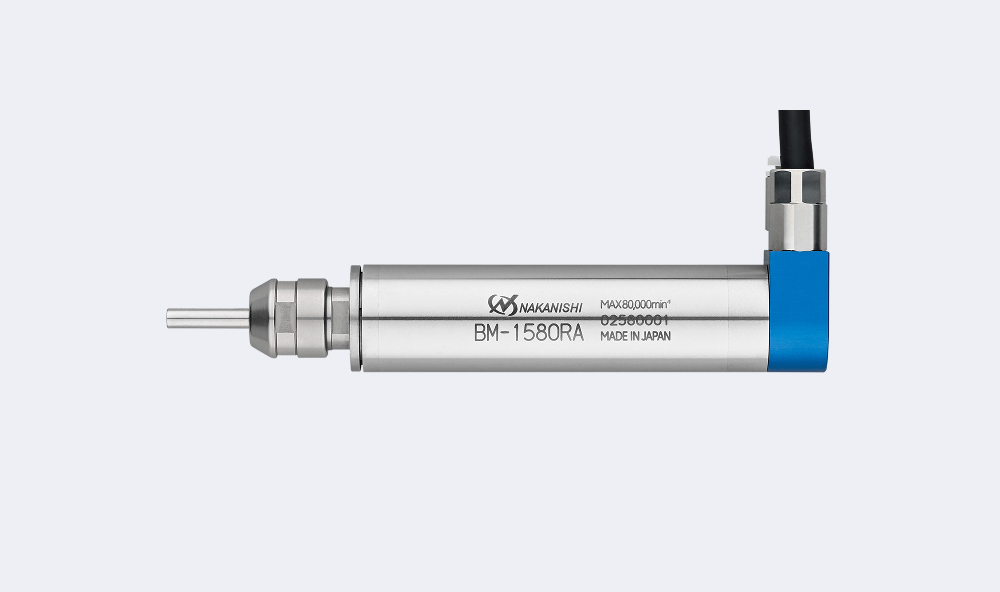

BM-1580RA Straight type motor spindle for CNC Automatic Lathe
(Max. 80,000 min⁻¹)

Code Number7945

Type: Motor Spindle
Outer Diameter: φ15.875 mm
Motor speed: 80,000 min-1
Max. power: 115 W
Spindle accuracy: Within 1 μm
Net weight: 140 g
Standard equipment and accessories: Collet nut (CHN-A)
Wrench (8 × 5)・(9 × 11): 1 pc. each
*Collet is separately.
Applicable Sliding Headstock Type Automatic CNC Lathe: CITIZEN MACHINERY CO., LTD.
Cincom R01 / R04
Options: Collet (CHA Group): ø0.5–ø4.0 mm
Comparison Table
Compatible model: E3000i CONTROLLER
*Initials of the S/Ns: A–Z
*If it is connected to an incompatible controller, an “EL” error will be displayed on the indicator due to the controller’s error detection, and the motor will not rotate.

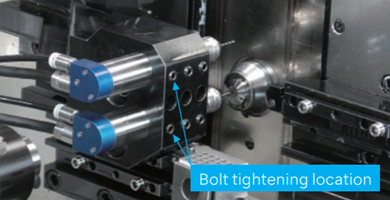

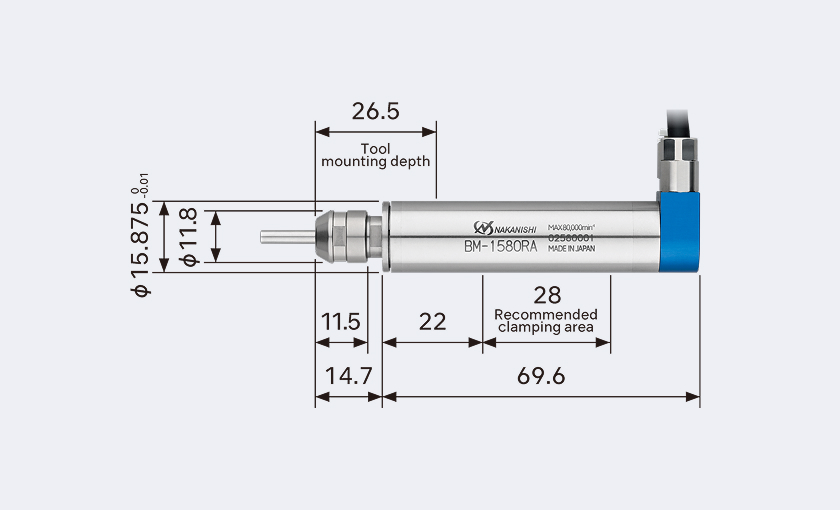

For installation on CITIZEN Cincom R01/R04: Tighten the clamping bolt only at the location shown in the figure below on the φ15.875 sleeve holder (within the CLAMPING AREA).
[Recommended tightening torque (M5): 0.7 N・m]

*Cord length: 0.5 m

Catalogs	DXF Data	STEP Data	Manual
Flyer	〇	〇	○(en)
