Motor Spindle E3000i

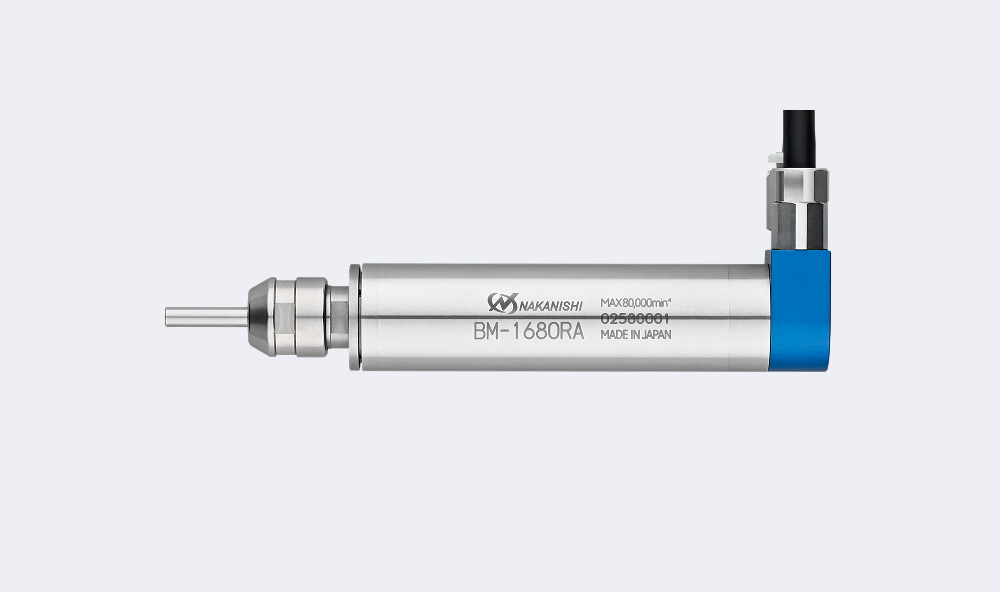

BM-1680RA Straight type motor spindle for CNC Automatic Lathe
(Max. 80,000 min⁻¹)

Code Number7944

Type: Motor Spindle
Motor speed: 80,000 min-1
Max. power: 115 W
Spindle accuracy: Within 1 μm
Net weight: 140 g
Standard equipment and accessories: Collet nut (CHN-A)
Wrench (8 × 5)・(9 × 11): 1 pc. each
*Collet is sold separately.
Applicable CNC Precision Automatic Lathe: TSUGAMI CORPORATION
P013 / P033 / P053 / P014 / P034 / P054 /P036W / P056W
Options: Collet (CHA Group): ø0.5–ø4.0 mm

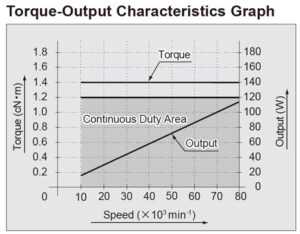

Comparison Table
Compatible model: E3000i CONTROLLER

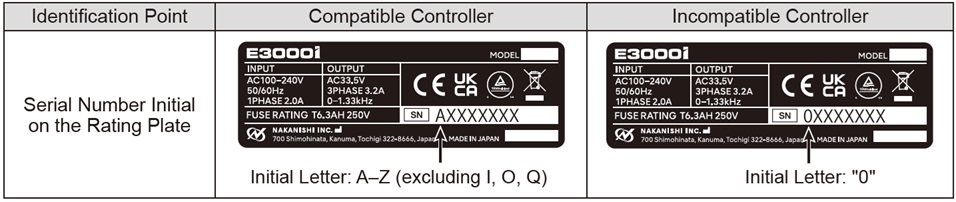

*Initials of the S/Ns: A–Z
*If it is connected to an incompatible controller, an “EL” error will be displayed on the indicator due to the controller’s error detection, and the motor will not rotate.

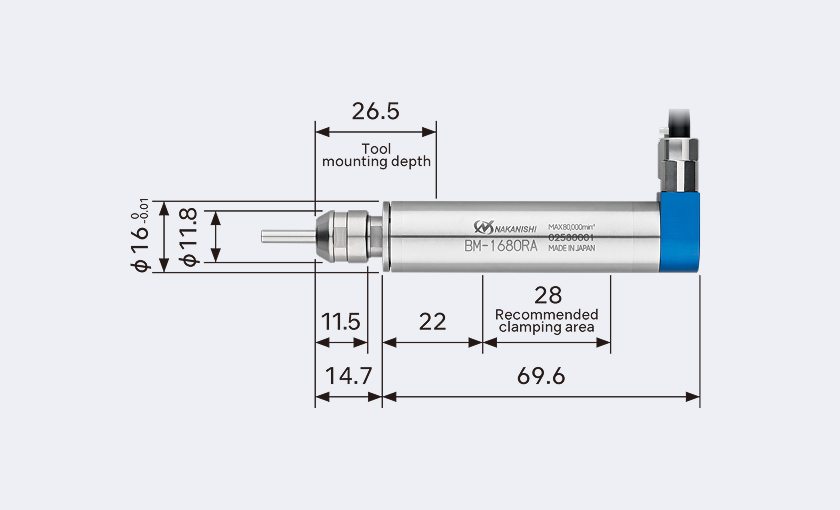

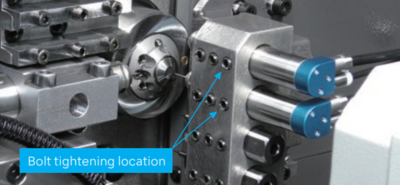

For installation on TSUGAMI P0 series: Tighten the clamping bolt only at the location shown in the figure below on the φ16 sleeve holder (within the CLAMPING AREA).
[Recommended tightening torque (M6): 1.0 N・m]

*Cord length: 0.5 m
