Motor Spindle
E3000i
BMF-4230RA-TSU
Flange type torque motor spindle for CNC automatic lathe
Angle cord type
(Max. 30,000 min⁻¹)
*Compatibility to be ready in December 2026
Code Number7949
Products
- Type
- Motor Spindle
- Outer Diameter
- φ42 mm
- Motor speed
- 30,000 min-1
- Max. power
- 350 W
- Spindle accuracy
- Within 1 μm
- Min. bending cord radius
- 60 mm
- Net weight
- 1,075 g
- Standard equipment and accessories
- Collet nut (CHN-A)
Wrench (8 × 5)・(9 × 11)
Hex. socket bolt (M5×30): 4 pcs. each
*Collet is sold separately. - Interchangeable rotary tool
- 3293-Y3041
(manufactured by TSUGAMI CORPORATION) - Applicable CNC Precision Automatic Lathes
- Cartridge-type B-axis tool rest (optional) such as SS207-Ⅱ(-5AX), SS327-Ⅲ(-5AX), SS327-Ⅲ(-5AX) etc.
- Options
- Collet (CHA Group): ø0.5–ø4.0 mm
Motor cord: 3 m (7931), 5 m (7932), 7 m (7933)
- Comparison Table
*Quick disconnect cord length: 1.0 m

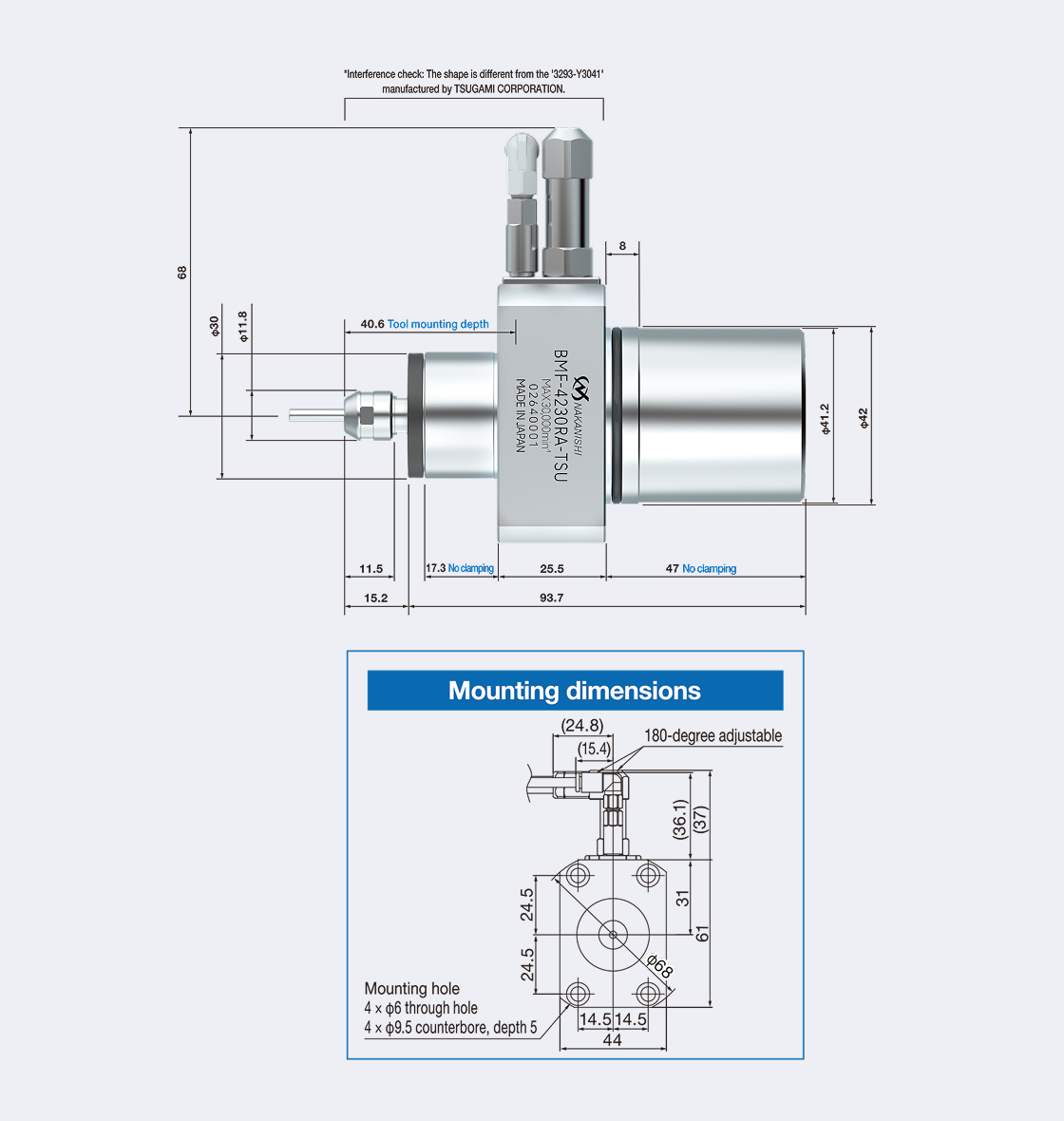

Size
