EmaxPROgress CONTROLLER Controller

Products

■High-speed Up To 80,000min-1
Rotation speed can be adjusted between 1,000and 80,000 min-1 (in 500 min-1 increments).
It delivers smooth yet powerful torque across the entire speed range, from low to high speeds.
■Completely Redesigned Motor Control System; 180-Degree Vector Control
Compared to conventional drive systems, this reduces rotational irregularities and enables quieter, more stable operation. With unprecedented smoothness and responsiveness*, it delivers “the feeling of cutting exactly as intended.”
*Compared to conventional control methods: Speed tracking performance is more than double
■Supports a wide range of finishing applications with a diverse selection of motors and attachments
In addition to the newly introduced 80,000 min-1 high-speed motor handpiece, all motors and attachments for the high-end Espert 500 and the industry-standard EmaxEVOlution are compatible.
■Load Visualization with a Flash Load Meter
Equipped with a Load Meter that displays load status.
It visualizes the load rate, enabling standardization of operations. Additionally, the meter display changes depending on the connected motor, expanding the range of machining applications.
■Display Settings for Vertical or Horizontal Mounting
You can choose to place the controller vertically or horizontally to suit your installation space (layout).
■Lightweight Body
Controller weight: 1.25 kg. Achieves a significant weight reduction of over 50% compared to previous models.
■Equipped with Various Safety Features
Equipped with safety features such as overheating protection, load warning audio alert, safety functions, and acceleration selection.
■Outstanding Operability
Features a large-diameter volume knob for excellent operability. It makes adjusting the speed easy and improves work efficiency.
■Two Handpieces Can Be Connected
By connecting two sets of handpieces and switching channels according to the task, you can improve efficiency.
*Two sets cannot be used simultaneously.
■Features a switching power supply compatible with worldwide input voltages.

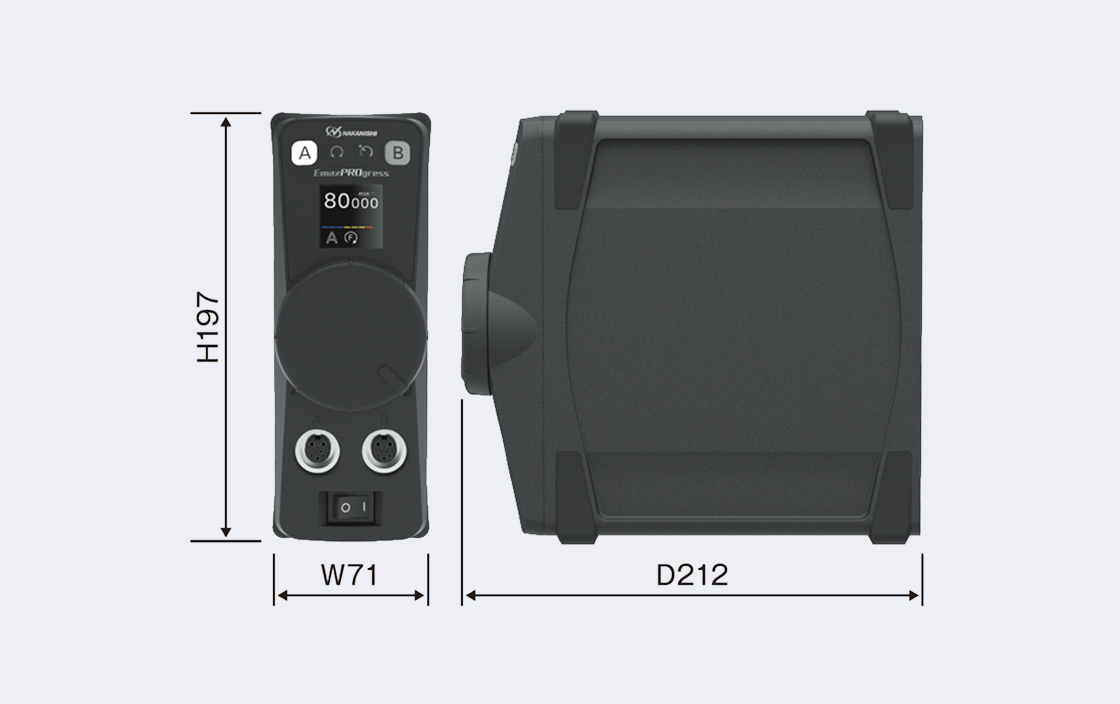

Size

Download
