Spindle Xpeed

Xpeed1200 Air bearing turbine spindle
(Max. 120,000 min⁻¹)

Code Number1854
Xpeed1200

Products

Type
Spindle
Outer Diameter
φ65 mm
Allowable motor speed
120,000 min-1
Spindle runout
Within 1 μm
Max. power
192 W
Collet
CHK-AA Group
(ø3.0–6.35 mm)
Net weight
2,300 g
Air bearing required air pressure
0.6 MPa
(Air consumption: 60 NL/min)
Air turbine operation air pressure
0.5 MPa
(Air consumption: 315 NL/min)
Bearing load capacity
Radial: Less than 25N
Thrust: Less than 70N
Standard equipment and accessories
Collet ø4.0 mm (CHK-4.0AA)
Collet nut (K-265A)
Wrench (12 x 14): 1 pc.
Torque wrench (14 mm): 1 pc.
Supply air hose (transparent ø6 x 1.5 m): 1 pc.
Supply air hose (blue ø6 x 1.5 m): 1 pc.
Fitting for piping plug (ø6): 6 pcs.
Protective cover: 1 pc.
Protective cap: 1pc.
Stepped test bar (ø2 mm x ø 4 mm x 34L): 1 pc.
Options
Collet (CHK-AA Group): ø3.0, ø3.175, ø4.0, ø6.0, ø6.35 mm
Comparison Table

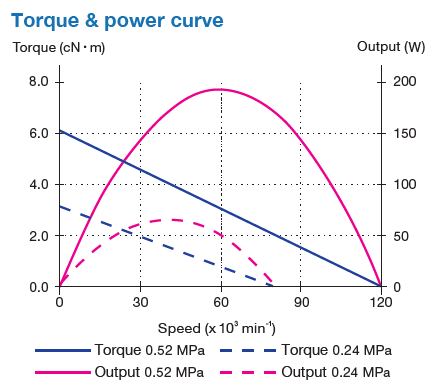

Comparison Table

■Detection of rotation speed

Fiber sensor mounting holes available

Reflective mark on rotary axis (outpout signal: 1pulse / rev)



■Air piping

Air supply (Turbine): ø6 mm x 2 parts

Air supply (Air bearing): ø6 mm x 2 parts

Air supply (Brake): ø6 mm x 2 parts



*Air bearing spindles require clean dry air for proper operation.

*Never rotate the spindle, change cutting tools or collet without supplying clean, dry air to the bearing surfaces.

*Always supply clean, dry air to the bearing surfaces even when the spindle is not being rotated.

*Do not start work process until after stable rotation has been established and verified.

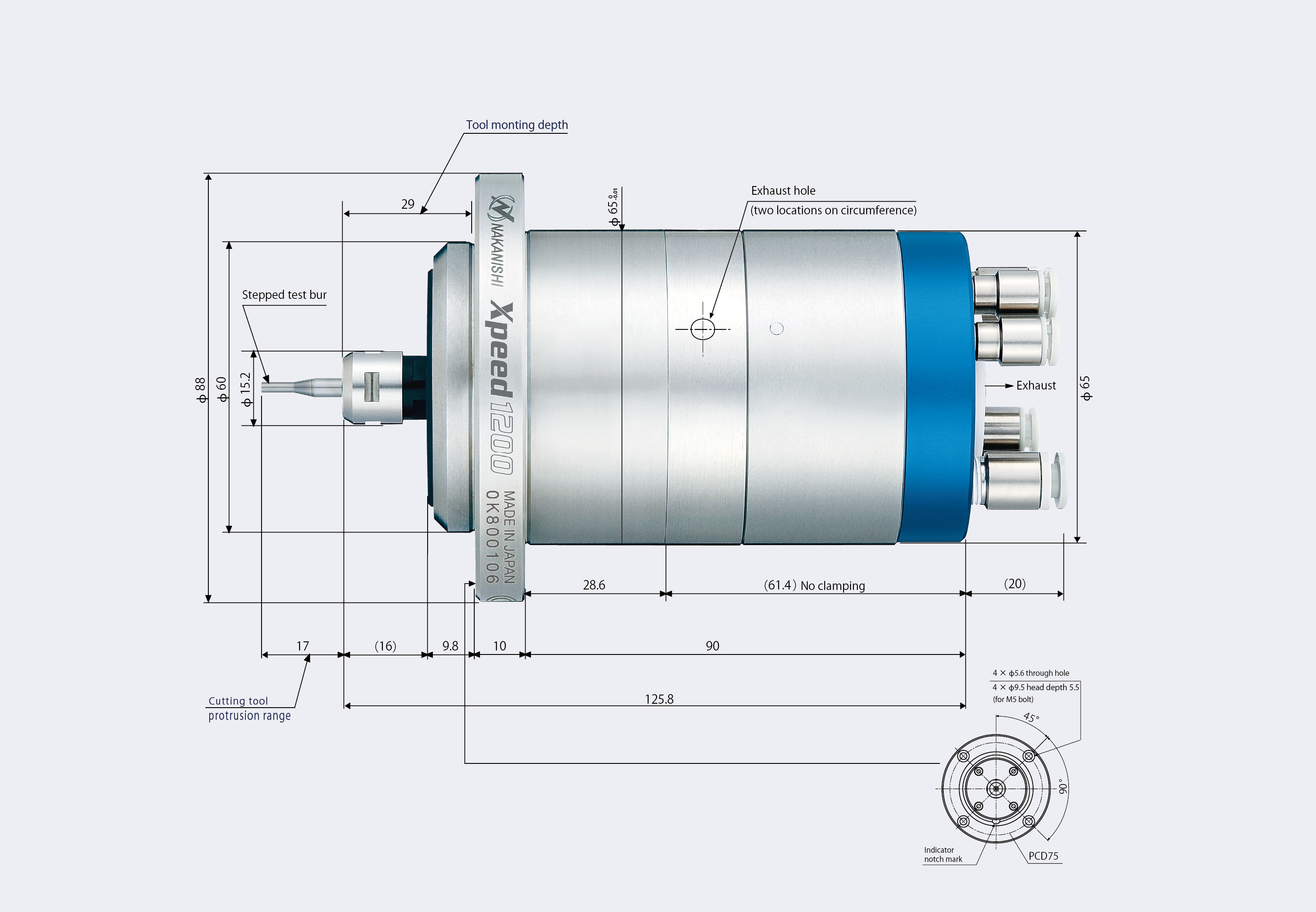

Size
