- Type
- Spindle
- Outer Diameter
- φ40 mm
- Speed
- 100,000 min⁻¹
- Spindle runout
- Within 1 μm
- Max. power
- 88 W
- Collet
- CHA Group
(φ0.5–4.0 mm) - Weight
- 820 g
- Air bearing required air pressure
- 0.55 MPa
(Air consumption: 50 NL/min) - Air turbine operation air pressure
- 0.55 MPa
(Air consumption: 135 NL/min) - Bearing load capacity
- Radial: Less than 20N
Thrust: Less than 35N - Standard accessories
- Collet ø3.0 mm (CHA-3.0)
Collet nut (CHN-3A)
Rotation speed detection sensor cable: 1 pc.
Wrench (10 × 10): 1 pc.
Bar wrench (K-277): 1 pc.
Hexagon wrench (2 mm): 1 pc.
Protective cover: 1 pc.
Cap: 1 pc.
Test bar (ø3 x 40L): 1 pc. - Options
- Collet (CHA Group): ø0.5–ø4.0 mm

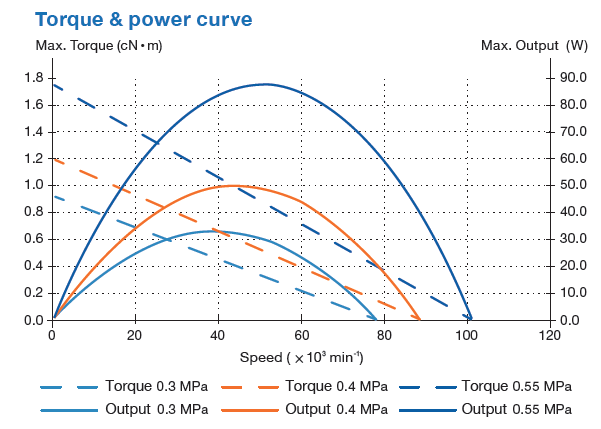

- Comparison Table
■Detection of rotation speed
Built-in Magnetic Sensor (output signal: 1pulse / rev)
■Air piping
Air supply (Turbine): ø6 mm × 2parts
Air supply (Air bearing): ø6 mm
*Supply air hose is sold separately.
*Air bearing spindles require clean dry air for proper operation.
*Never rotate the spindle, change cutting tools or collet without supplying clean, dry air to the bearing surfaces.
*Always supply clean, dry air to the bearing surfaces even when the spindle is not being rotated.
*Do not start work process until after stable rotation has been established and verified.

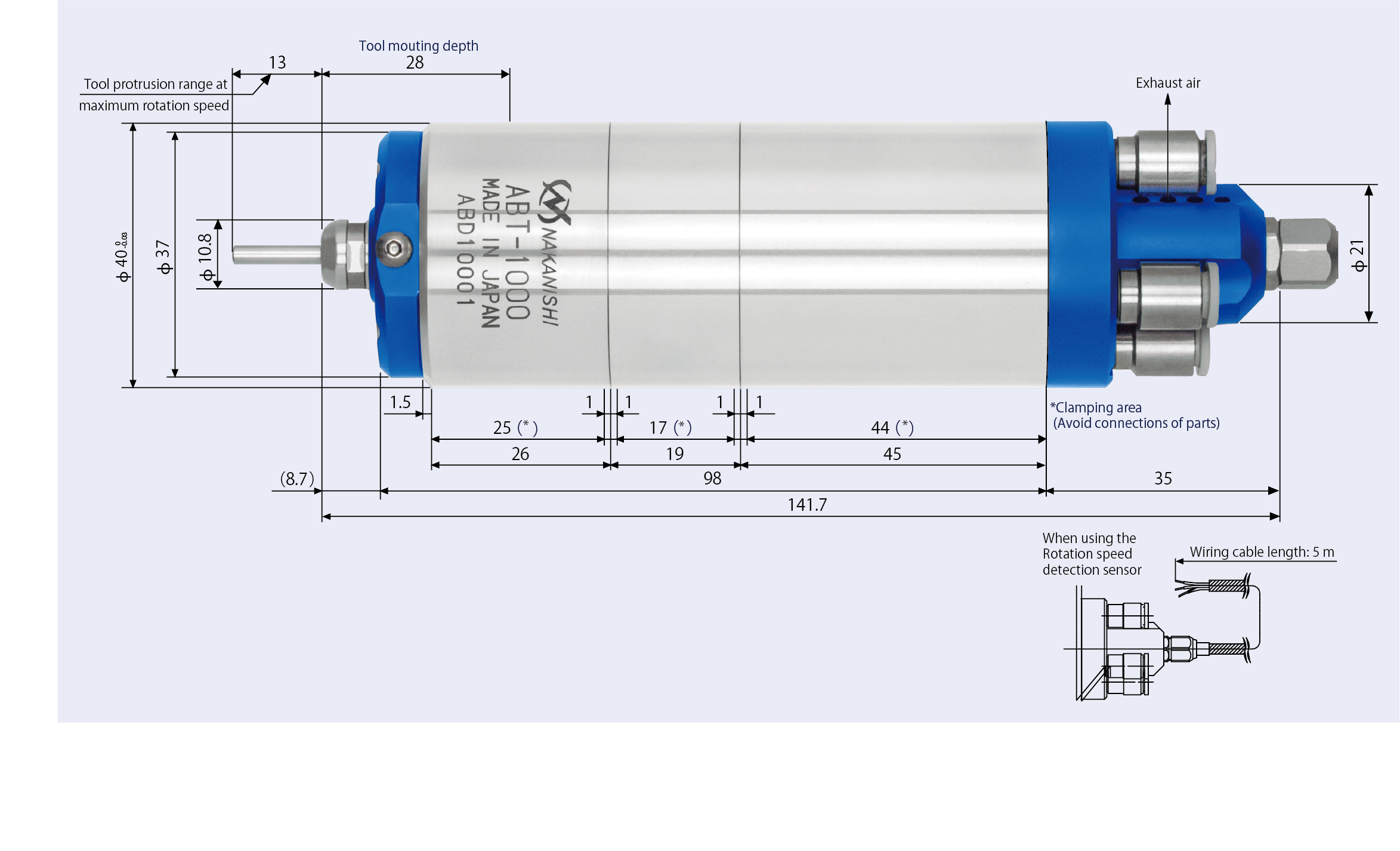

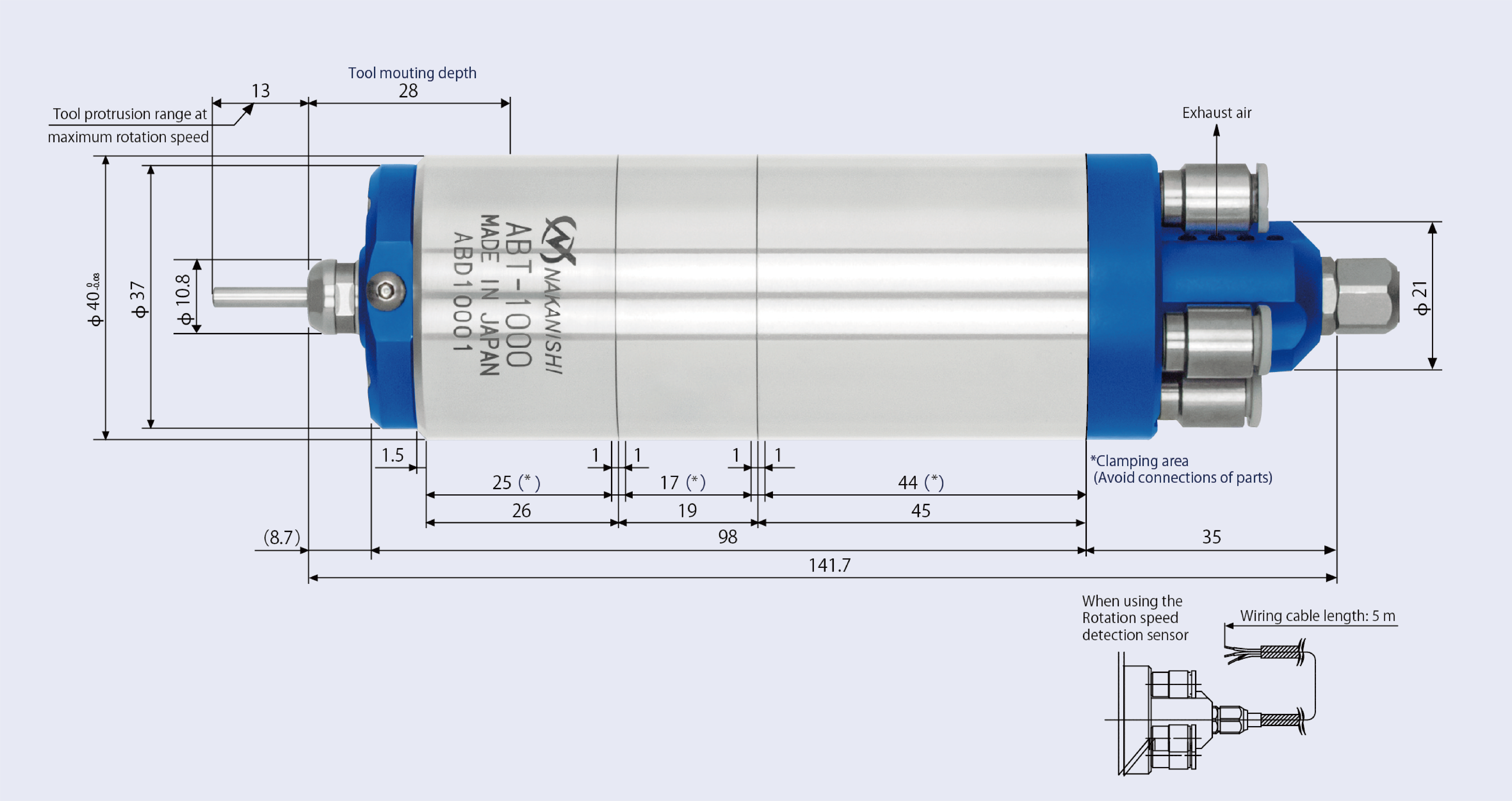

Size
