Lineup

Motor Spindle E3000i

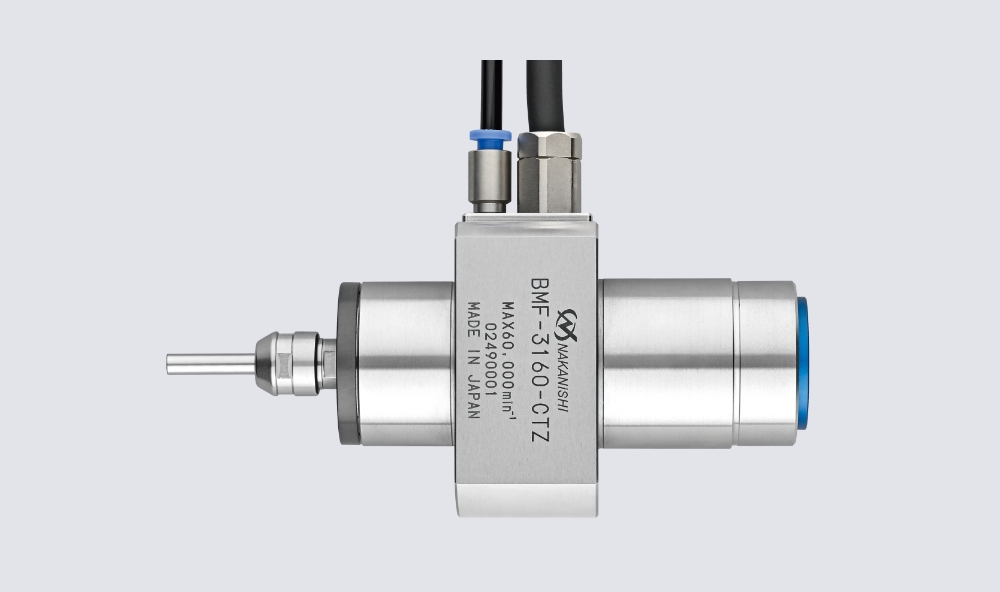

BMF-3160-CTZ Flange type motor spindle for CNC automatic lathe
(Max. 60,000 min⁻¹)

Code Number7923

Type: Motor Spindle

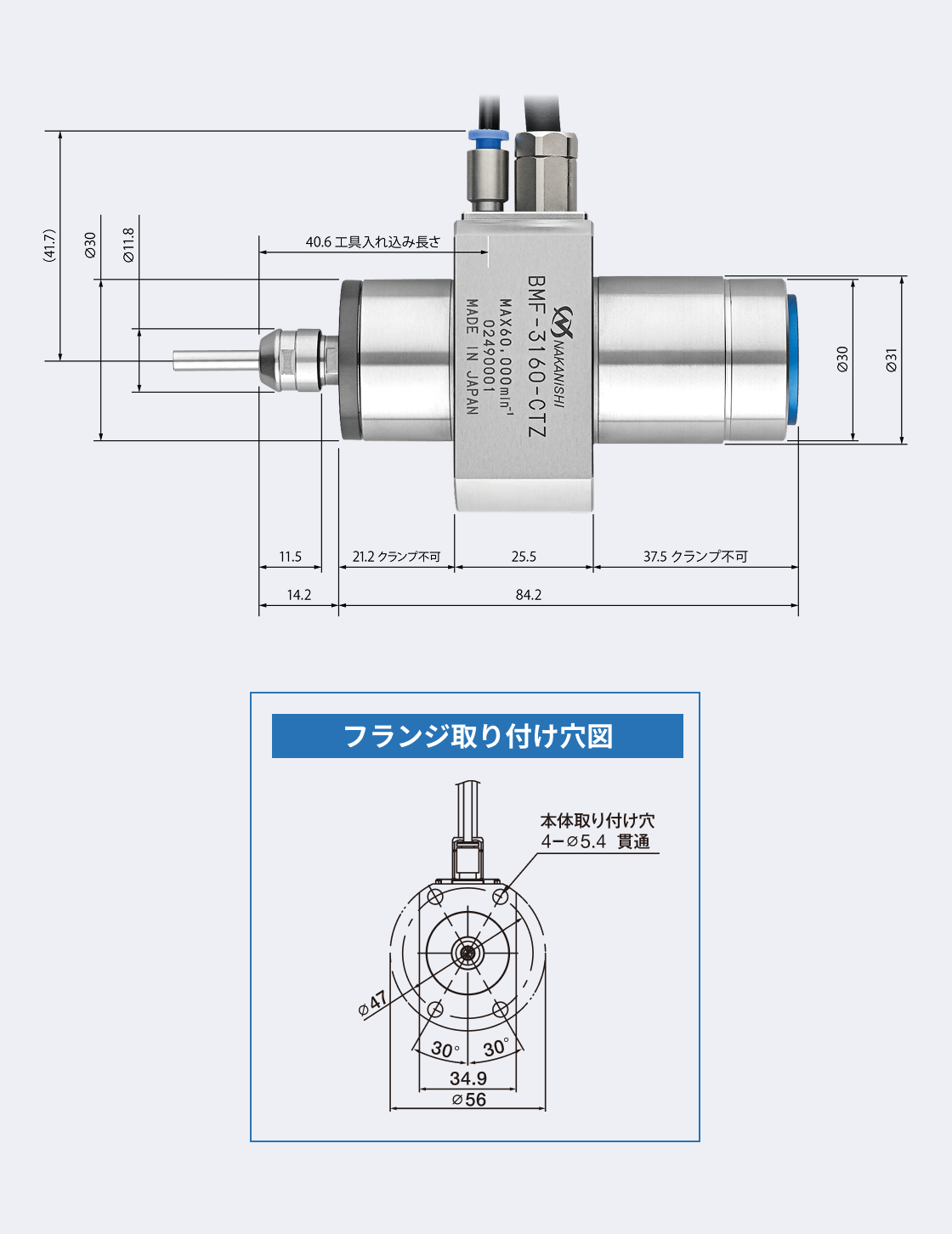

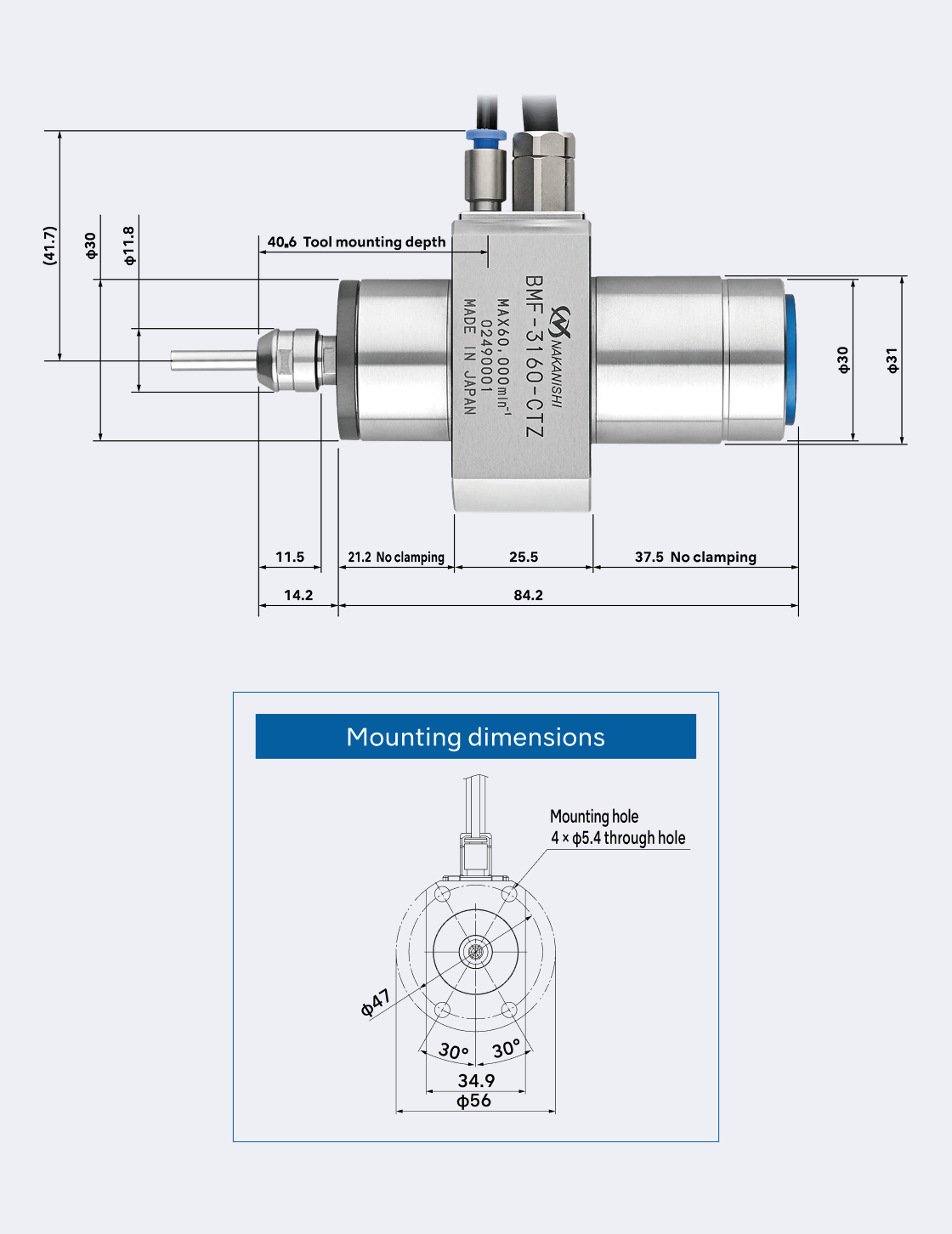

Outer Diameter: φ31 mm
Motor speed: 60,000 min-1

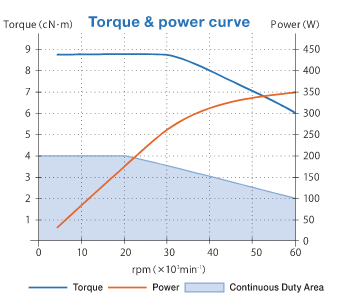

Max. power: 350 W
Spindle accuracy: Within 1 μm
Min. bending cord radius: 60 mm
Net weight: 604 g
Standard equipment and accessories: Collet nut (CHN-A)
Wrench (8 × 5)・(9 × 11)
Hex. socket bolt (M5 × 35): 4 pcs.

*Collet is sold separately.
Options: Collet (CHA Group): ø0.5–ø4.0 mm
Motor cord: 3 m (7931), 5 m (7932), 7 m (7933)
Comparison Table

*Quick disconnect cord length: 0.5 m

Catalogs	DXF Data	STEP Data	Manual
	○	○	○(en)
