Motor Spindle E3000i

CTMF-3130 Coolant through motor spindle for CNC automatic lathe
(Max. 30,000 min⁻¹)

Code Number7926
CTMF-3130

Products

Type
Motor Spindle
Outer Diameter
φ31 mm
Motor speed
30,000 min-1
Max. power
350 W
Spindle accuracy
Within 1 μm
Collet
CHA Group AA
(ø3.0, ø3.175, ø4.0 mm)
Min. bending cord radius
60 mm
Net weight
1,100 g
Standard equipment and accessories
Wrench (8 × 5)・(9 × 11)
Hex. socket bolt (M5 x 80): 2 pcs.

*Collet and Collet nut are sold separately. Please match the collet and collet nut size.
Shank diameter of corresponding tool
3.0, 3.175, 4.0 mm
Coolant pressure
3.0‒20.0 MPa
Coolant filtration
5 μm or less
Options
Collet (CHA Group high precision type AA): ø3.0, ø3.175, ø4.0 mm
Collet nut (CHN-CTA): 3.0, 3.175, 4.0 mm

*The Collet and the Collet nut are sold separately. Please match the Collet and Collet nut size.
Comparison Table
Comparison Table

*Quick disconnect cord length: 0.5 m
*High-pressure pump, High-pressure coolant hose, etc. to be arranged by the customer.

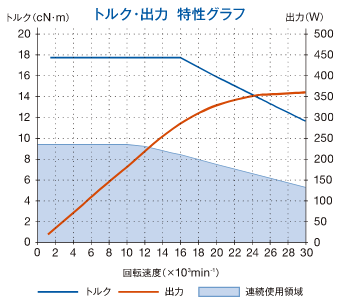

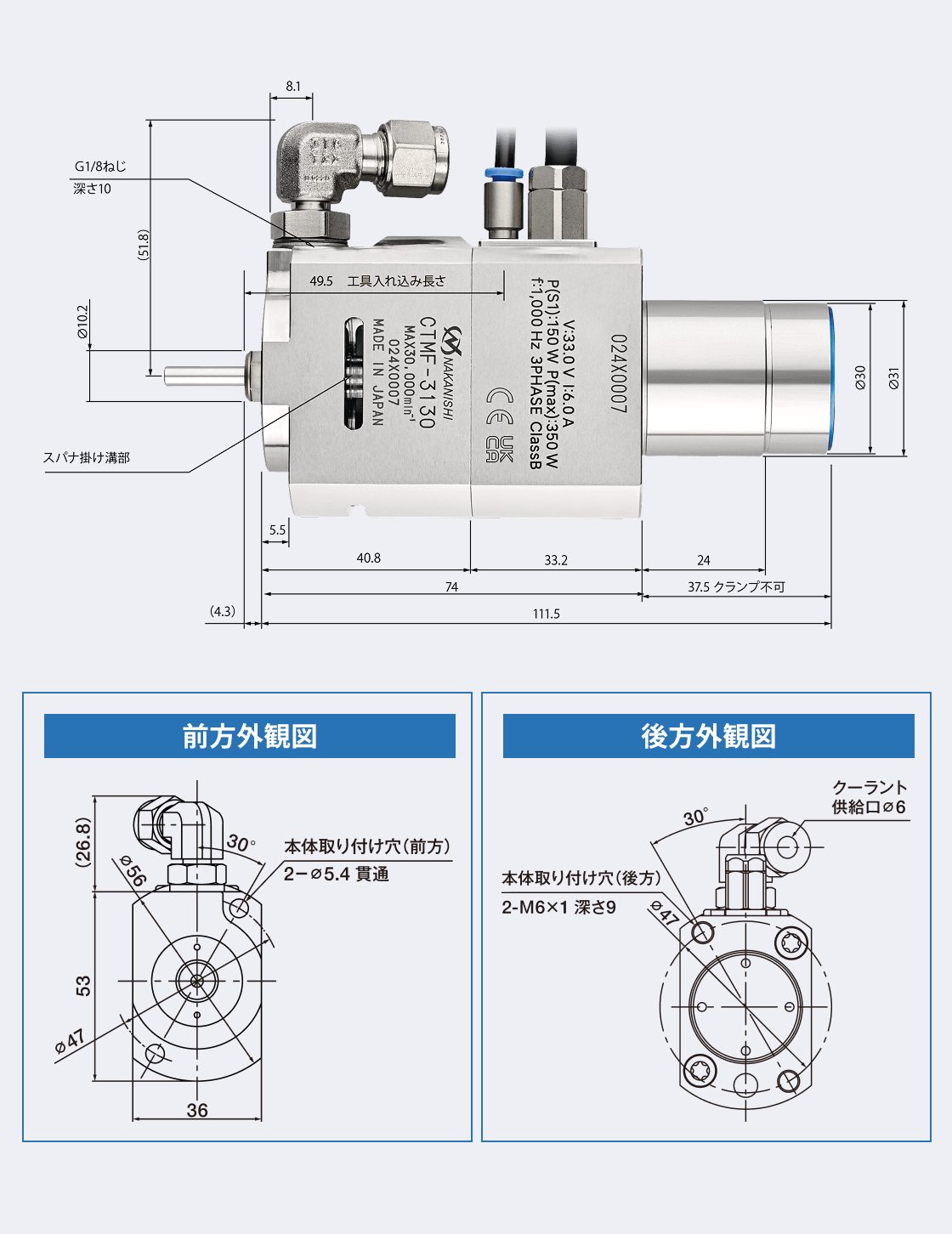

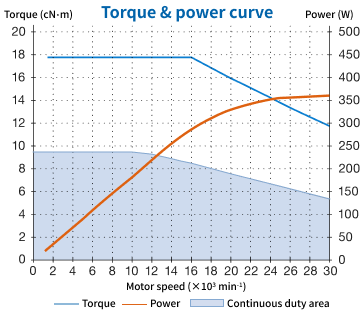

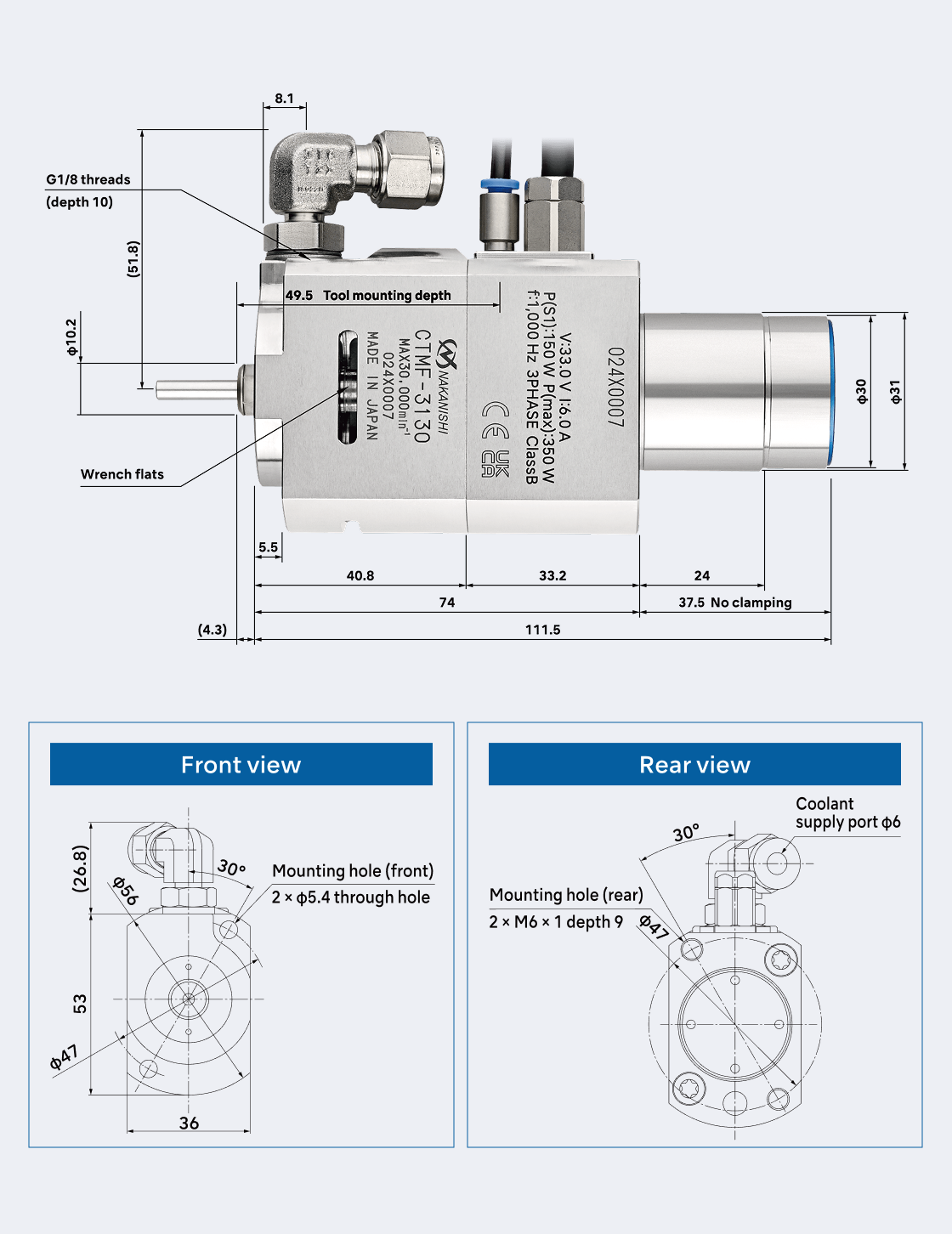

Size

CTMF-3130 サイズ画像

Download

Catalogs DXF Data STEP Data Manual
can scroll

Case Studies

Related Links

Download

Please fill out the below form to obtain operation manuals, DXF data, or STEP data
