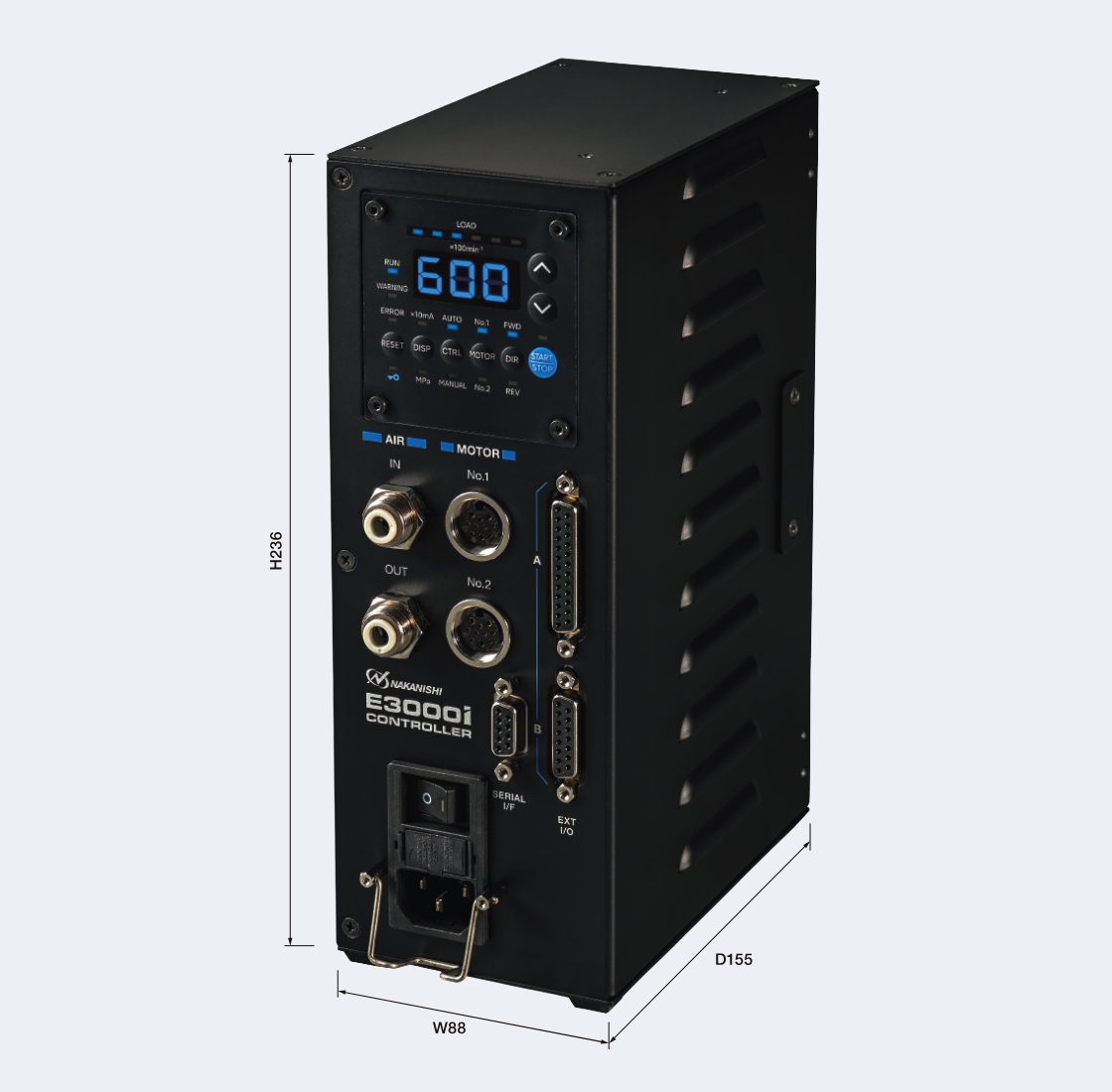

E3000i CONTROLLER Controller

Code Number7927

Products

Type: Controller
Speed range: 1,000–80,000 min-1
Input voltage: AC 100–240 V Without plug
Multiple output power
Max. power: 350 W
Power consumption: AC 1.8 A
Air consumption: 1 Motor spindle: 30N L/min (0.2-0.3 MPa) *
2 Motor spindles: 60N L/min (0.3-0.4 MPa）

*in case of E3000i series
Net weight: 3.0 kg
Standard equipment and accessories: Power cord (3m)
ø6 mm Air hose with filter (K-251: 2058): 2 m
Branch adapter
Connector cap: 2 pcs.
Reducer
Connector cover A・B・Serial IF
Power cord hook
Bracket (bottom・rear): 2 pcs. each
Rubber pad: 4 pcs.
Fuse: 2 pcs.
Mounting screw: 8 pcs.

●Wide speed range
The controllable speed ranges from 1,000 to 80,000 min-1, while the 3-digit display allows speed setting in units of 200 min-1.

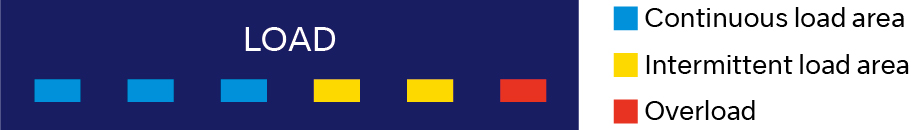

●Load monitor LED
Load meter enables setting of optimum cutting conditions.

●Controls E3000/E2000/iSpeed3/HES series motor spindles.
●Two motors can be connected to provide individual control of each motor.
●External inputs
Motor ON/OFF, Rotating direction, Motor speed setting, Safety relay brake, etc.
●External outputs
Motor current, Rotating pulse, Load, Error, etc.
●Parameter Setting
Maximum motor speed setting, Fix motor speed, etc.

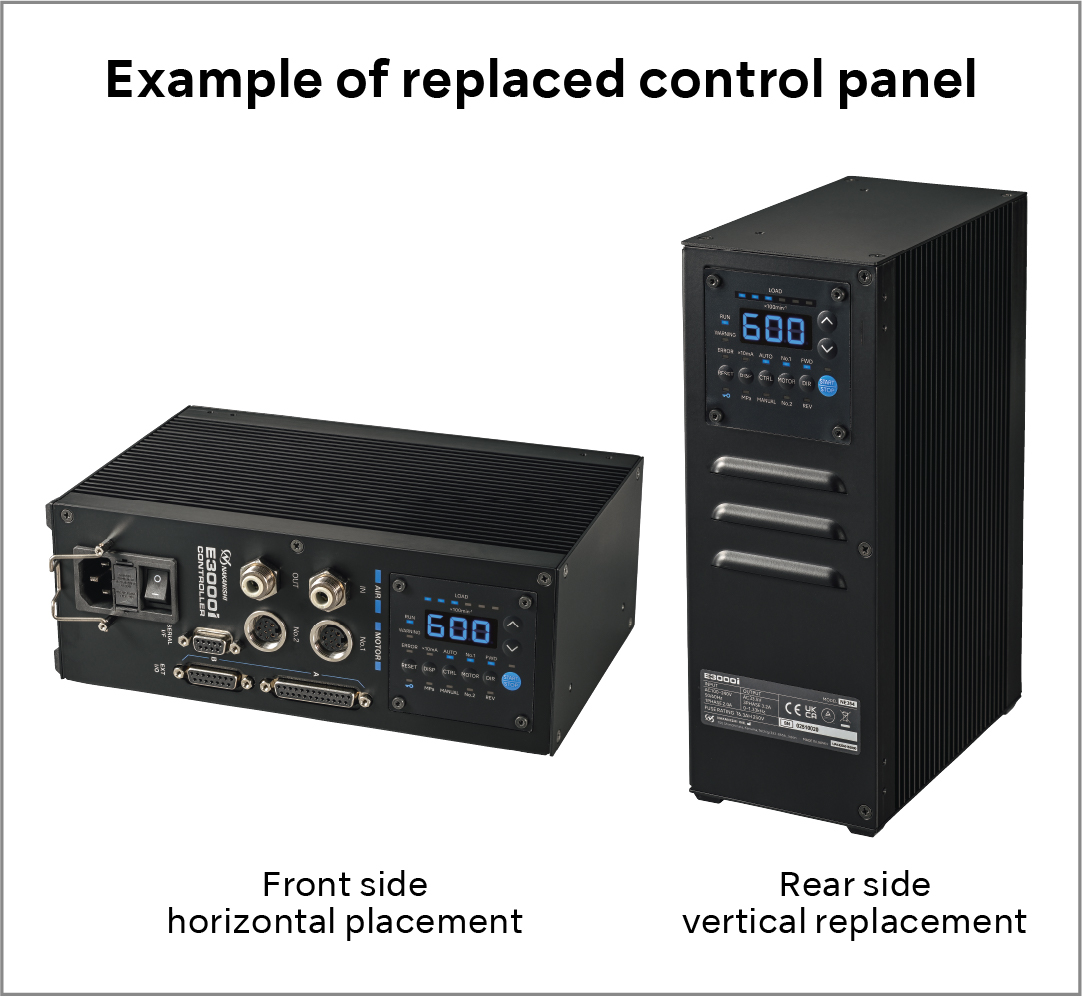

●Improved installation flexibility with interchangeable operation panel.
The panel can be changed vertically, horizontally, or on the back, taking into consideration the installation space and the direction of the cord wiring.

[Other functions]
・Display function of motor current value: Motor load status, prevents excessive tightening when mounting the spindles to machines.
・Air pressure display function: Allows confirmation of air pressure supplied to the controller.
・Key hold function: Disables button operation on the operation panel.
For more information, please refer to the operation manual on our website.
