Lineup
Products
- Type
- Spindle
- Outer Diameter
- φ25 mm
- Max. rpm
- 50,000 min-1
- Spindle accuracy
- Within 1 μm
- Collet
- CHK Group
(ø0.5–ø6.35 mm) - Weight
- 253 g
- Standard accessories
- Collet nut (K-265)
Wrench (12 × 14): 2 pcs.・(22 × 27): 1 pc. - Options
- Collet (CHK Group): ø0.5–ø6.35 mm
※ Collet is sold separately.
Metal Saw Arbor (KCH-03): ød (I.D.) × under ø30 mm (O.D.)
Grindstone Arbor (AGM-03): Grindstone I.D. ø5.0 mm
Grindstone Flange (EGF-19): applicable grindstone I.D. ø19.05 × O.D. ø40 × 7 mm
*Outside diameter ø25.4 mm type is also available.

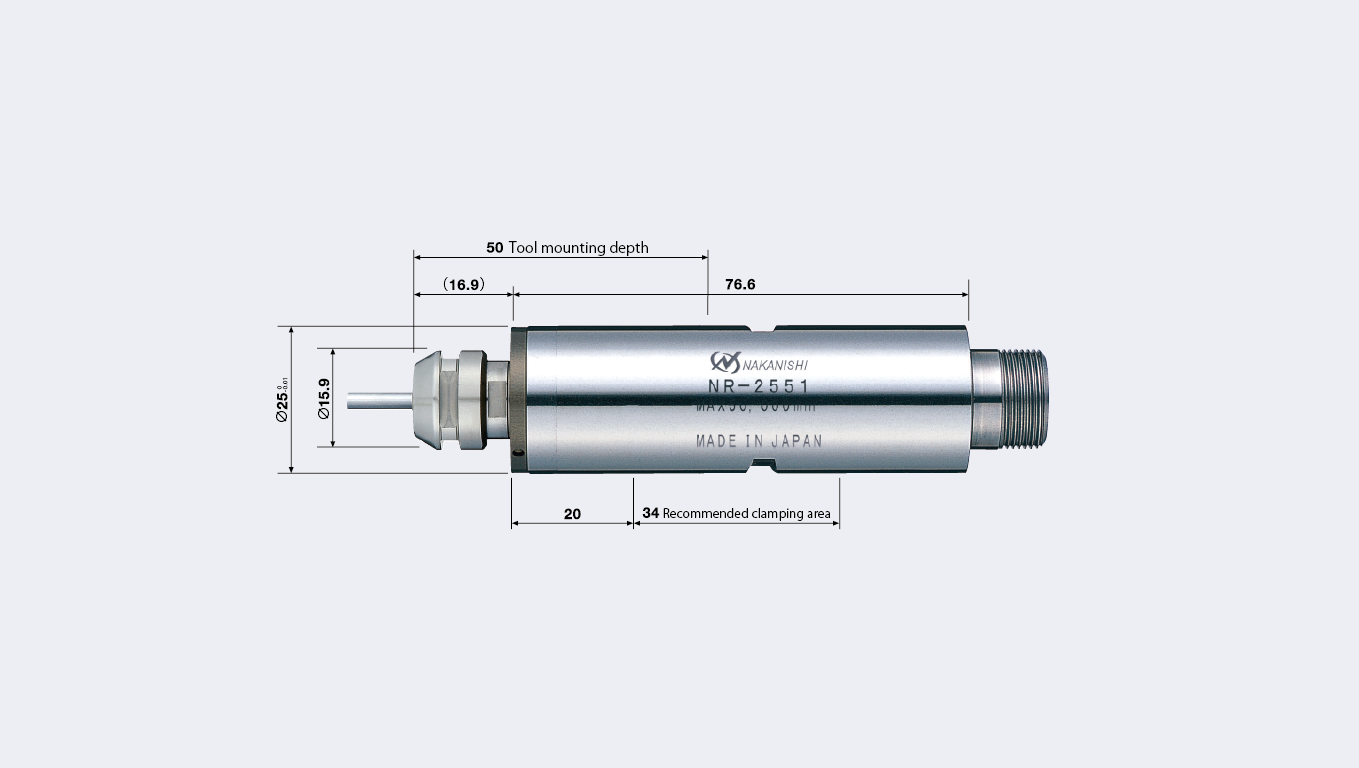

Size
