- Type
- Spindle
- Outer Diameter
- φ30 mm
- Max. rpm
- 60,000 min-1
- Air pressure of collet open / clese
- 0.6 MPa
- Spindle accuracy
- Within 1 μm
- Collet holders
- QC3-K / QC3-K-R (for Collet CHK)
QC3-A / QC3-A-R (for Collet CHA)
QC3-SS (for Collet CHSS) - Weight
- 1,230 g
- Standard Accessories
- Wrench (22 × 27): 1 pc.
Air hose with filter (K-251): ø6 mm × 2 m 1 pc.
● Quick and easy collet holder change with air chucking mechanism.
● Enhancing productivity by enabling external tool set-up.
● 3 types of collet holders are available. (CHK φ0.5 〜 6.35 mm, CHA φ0.5 〜 4.0 mm, CHSS φ1.0 〜 3.175 mm)

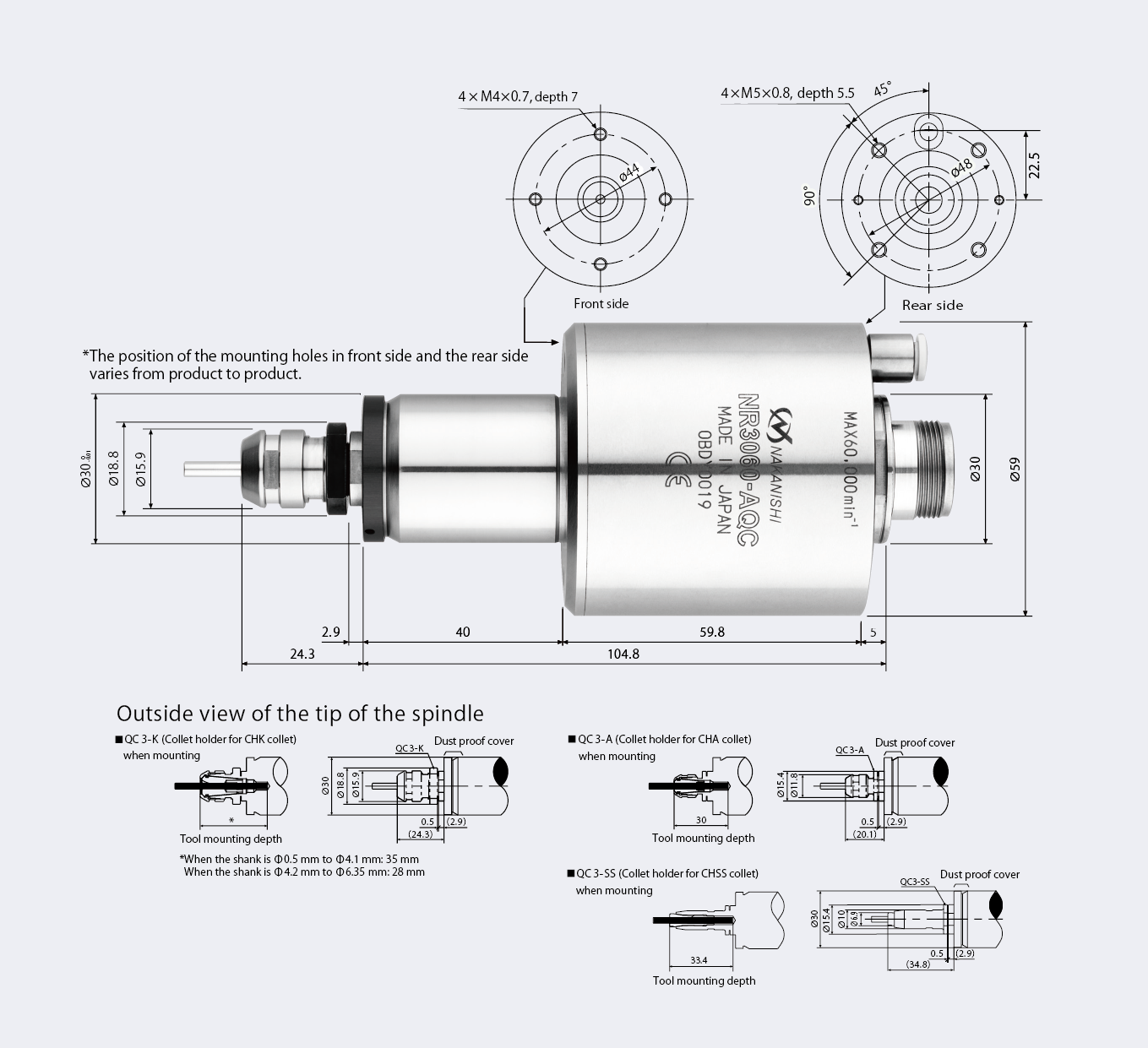

Size
