Products
- Type
- Spindle
- Outer Diameter
- φ30 mm
- Max. rpm
- 60,000 min-1
- Lever operating angle
- 90°
- Spindle accuracy
- Within 1 μm
- Collet holders
- QC3-K / QC3-K-R (for Collet CHK)
QC3-A / QC3-A-R (for Collet CHA)
QC3-SS (for Collet CHSS) - Weight
- 570 g
- Standard accessories
- Wrench (22 × 27): 1 pc.
● Quick and easy collet holder change with lever chucking mechanism.
● Enhancing productivity by enabling external tool set-up.
● 3 types of collet holders are available. (CHK φ0.5 〜 6.35 mm, CHA φ0.5 〜 4.0 mm, CHSS φ1.0 〜 3.175 mm)

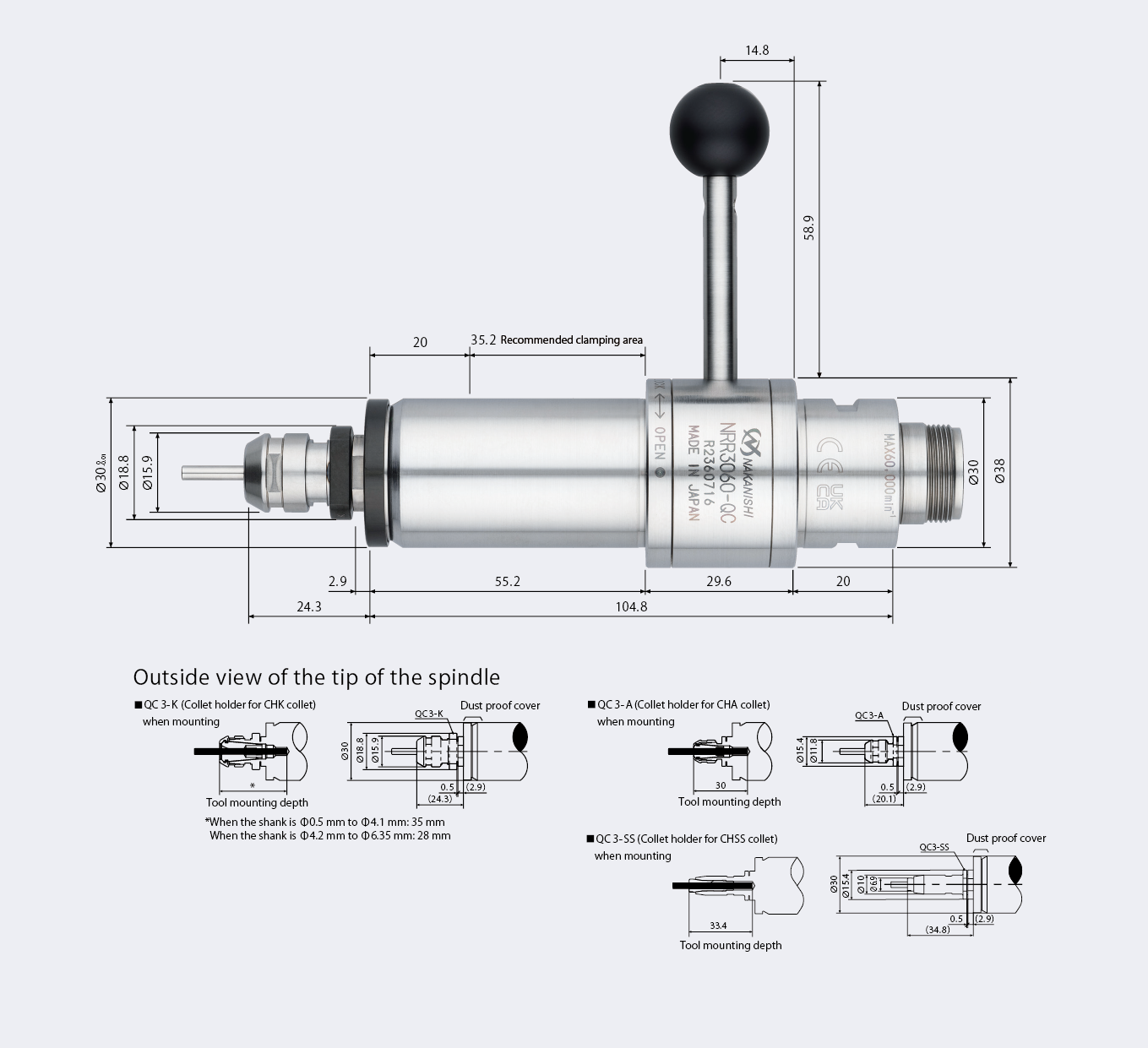

Size
Download
| Catalogs | DXF Data | STEP Data | Manual |
|---|---|---|---|
