RAS-151E Angle spindle With long head
(Max. 7,490 min⁻¹)

Code Number7840
RAS-151E

Products

Type
Spindle
Outer Diameter
φ30 mm
Max. speed at the cutting tool
7,490 min-1
Reduction ratio
1/2.67
Max. allowable motor speed
20,000 min-1
(Allowable rotational speed)
Spindle accuracy
Within 2 μm
Collet
CHK Group
(ø0.5–ø6.35 mm)
Net weight
413 g
Standard equipment and accessories
Collet nut (K-265)
Wrench (12 × 14): 2 pcs.・(22 × 27): 1 pc.
Options
Collet (CHK Group): ø0.5~ø6.35mm
*Collet is sold separately.
Metal Saw Arbor (KCH-03): ød (I.D.) × under ø30 mm (O.D.)
Grindstone Arbor (AGM-03): Grindstone I.D. ø5.0 mm

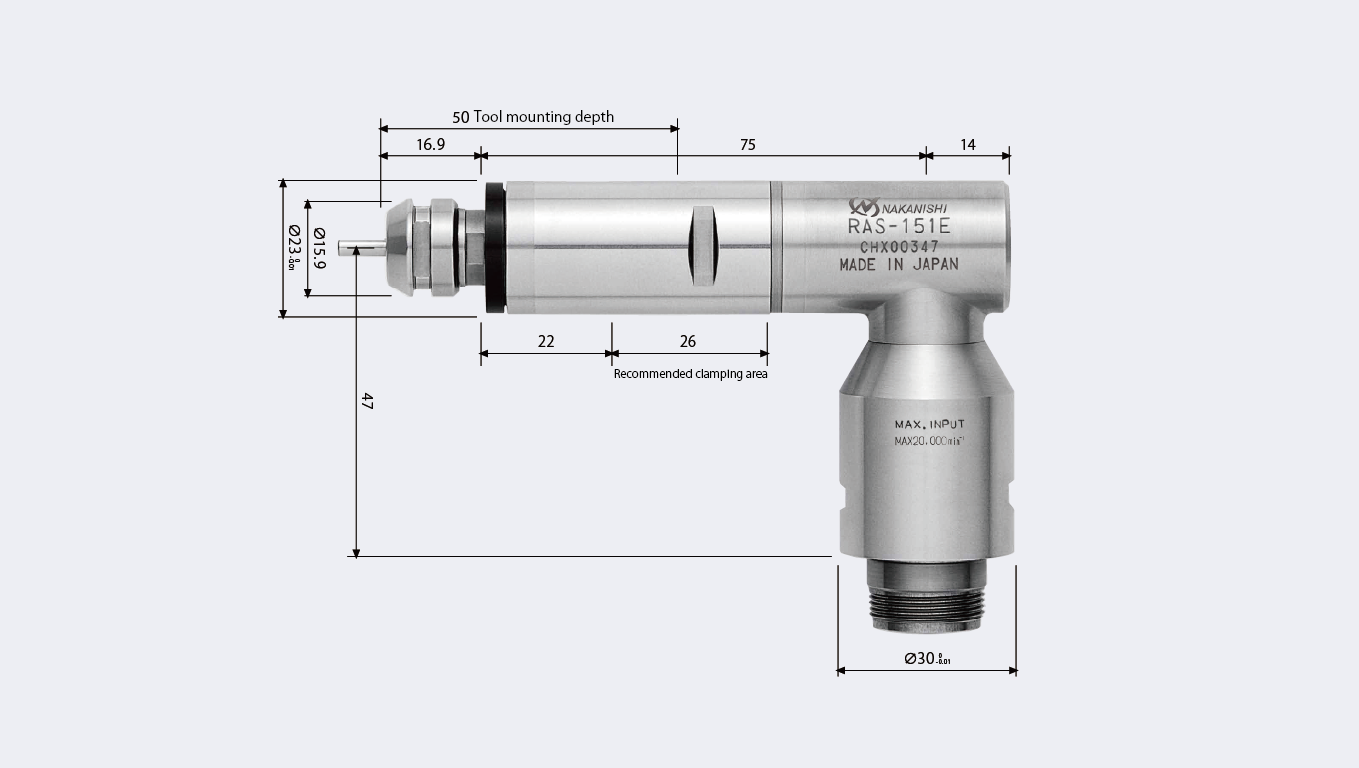

Size

RAS-151E サイズ画像
