Lineup

Motor Spindle E4000

BMS-4020RA Angle cord type
(Max. 20,000 min⁻¹)

Code Number7804
BMS-4020RA

Products

Type
Motor Spindle
Outer Diameter
φ40 mm
Max. rpm
20,000 min-1
Spindle Accuracy
Within 1 μm
Collet
CH16 Group
(ø3.0–ø10.0 mm)
Max. power
1,200 W
Cord length
2.0 m
Min. bending cord radius
70 mm
Max. torque
1.0 N・m
Weight
2.0 kg
Standard accessories
Collet nut (CHN-16)
Wrench (17 × 22): 2 pcs.
Specifications
Air pressure: 0.35 MPa
Max. air consumption: 100Nℓ / min
Power cable with Air hose: Connector diameter: ø30 mm / Air hose: ø6 mm
Signal cable: Connector diameter: ø16 mm
Options
Collet (CH16 Group): ø3.0–ø10.0 mm
*Collet is sold separately.
Power cable with Air hose: Length 2 m (9253), 4 m (9254), 6 m (9255)
Signal cable: Length 2 m (9257), 4 m (9258), 6 m (9259)
Comparison Table
Comparison Table

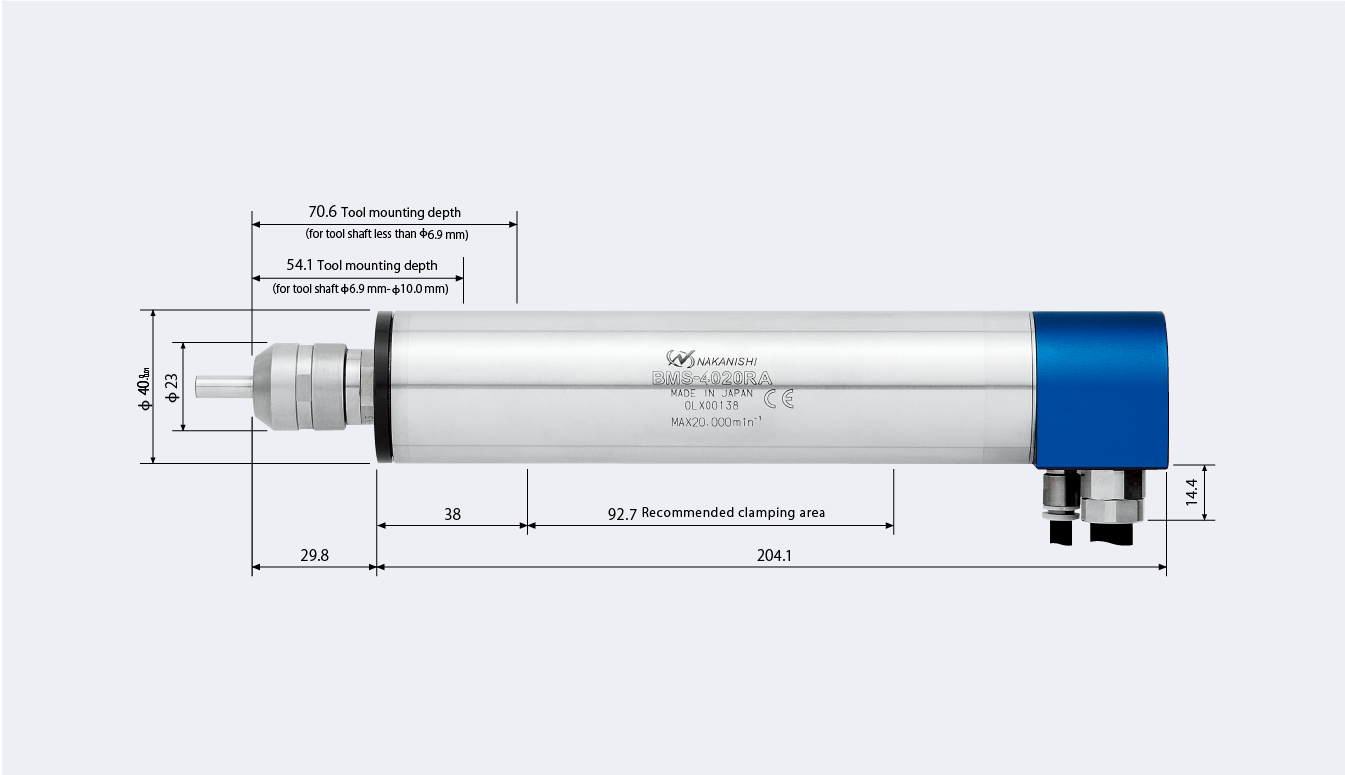

Size

BMS-4020RA サイズ画像
