Lineup

Motor Spindle E4000

BMS-4040 Straight cord type
(Max. 40,000 min⁻¹)

Code Number03M:7806
2M:7809
BMS-4040

Products

Type
Motor Spindle
Outer Diameter
φ40 mm
Max. rpm
40,000 min-1
Spindle accuracy
Within 1 μm
Collet
CH16 Group
(ø3.0–ø10.0 mm)
Max. power
1,200 W
Cord length
BMS-4040: 0.3 m
BMS-4040 2M: 2.0 m
Min. bending cord radius
70 mm
Max. torque
0.5 N・m
Weight
BMS-4040: 1.5 kg
BMS-4040 2M: 2.0 kg
Standard accessories
Collet nut (CHN-16)
Wrench (17 × 22): 2 pcs.
Specifications
Air pressure: 0.35 MPa
Max. air consumption: 100 Nℓ / min
Power cable with Air hose: Connector diameter: ø30 mm / Air hose: ø6 mm
Signal cable: Connector diameter: ø16 mm
Options
Collet (CH16 Group): ø3.0–ø10.0 mm
*Collet is sold separately.
Power cable with Air hose: Length 2 m (9253), 4 m (9254), 6 m (9255), 8 m (9256)
Signal cable: Length 2 m (9257), 4 m (9258), 6 m (9259), 8 m (9260)
*8 m Motor cord cannot be used for BMS-4040 2M.
Comparison Table
Comparison Table

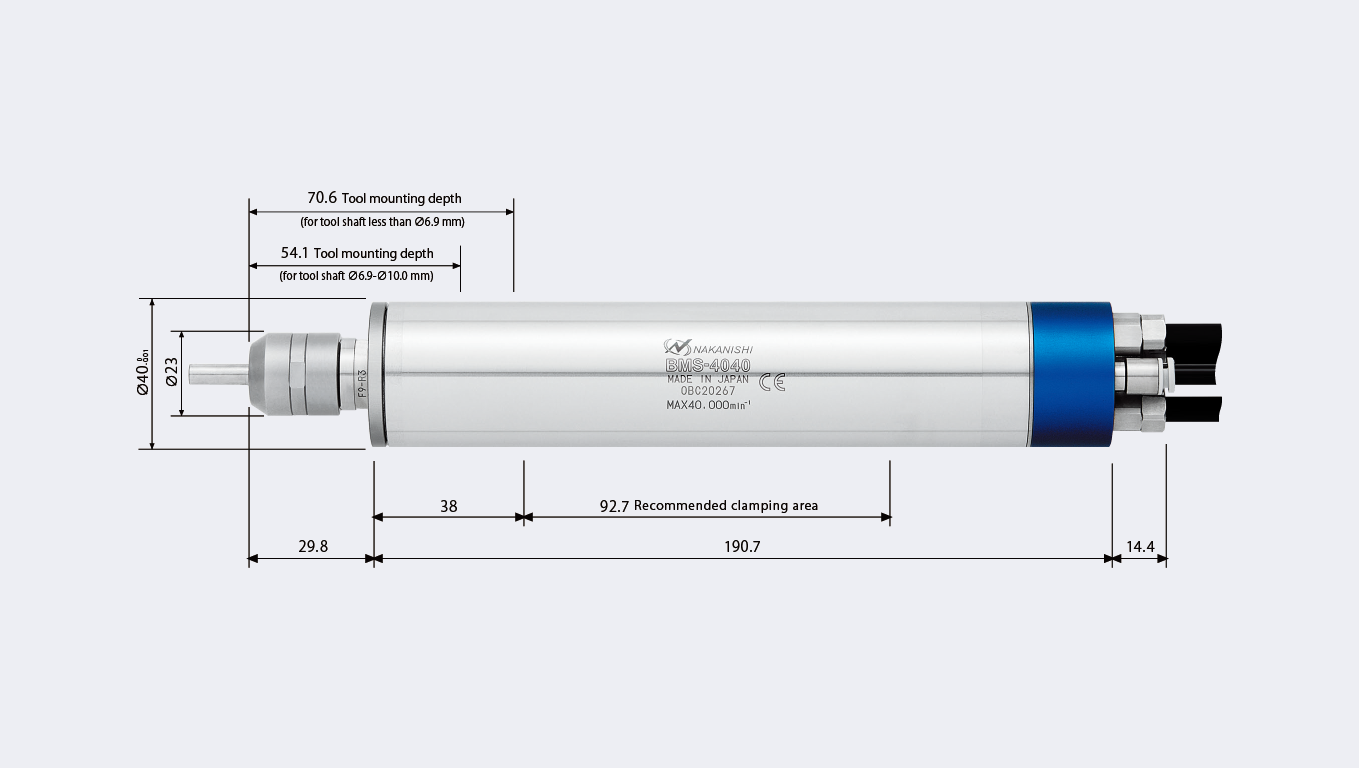

Size

BMS-4040 サイズ画像
