Lineup
Products
- Type
- Spindle
- Outer Diameter
- φ33 mm, φ50 mm
- Allowable rotation speed
- 60,000 min-1
- Air for collet opening
- 0.55–0.6 MPa
- Spindle accuracy
- Within 1 μm
- Collet
- CHB Group
(ø3.175 mm) - Weight
- 1,170 g
- Standard accessories
- Collet: ø3.175 mm (CHB-3.175)
Wrench (6.1 × 8)・(9 × 11): 1 pc. each
Bar wrench (K-236): 1 pc.
Air hose with filter (K-251): ø6 mm × 2 m - Options
- Collet (CHB Group): ø2.0, ø3.0, ø3.175, ø3.5, ø4.0 mm
● Prevents damage to electronic components on the PCB due to static electricity conducted during the machining process.
● The φ 10 x 15L extended spindle nose length helps to avoid interference with components mounted on the PCB.
● Pneumatic tool clamp and unclamp system allows for quick and easy automatic tool change.
● Tool clamping force is twice as strong as the NR50-5100 Series.

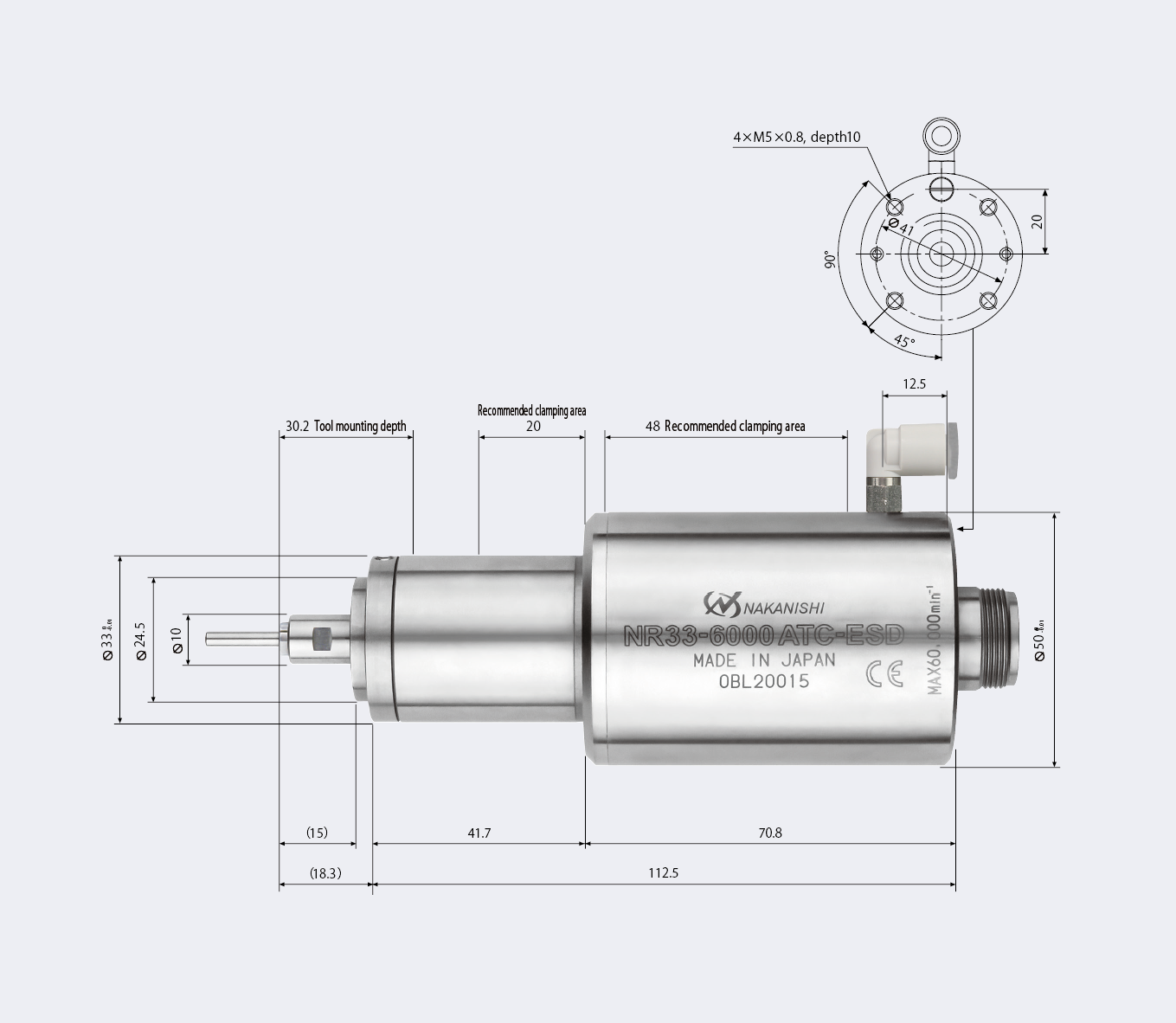

Size
